ELATION-142553

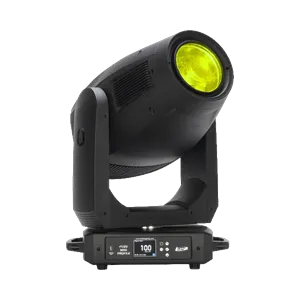

Elation Fuze Max Profile
El FUZE MAX PROFILE™ es un proyector de recorte LED automatizado de espectro completo diseñado para teatro, televisión y una gran variedad de otras aplicaciones de iluminación de precisión. El motor con CRI de 92 utiliza una matriz de LED homogeneizada de 5 colores y 800W que consta de fuentes en rojo, verde, azul, menta y ámbar. Los LED minuciosamente ajustados garantizan una reproducción precisa del color y blancos dinámicos al tiempo que entregan un potente rendimiento de más de 21.000 lúmenes. La temperatura de color virtual, el ajuste de magenta/verde más la emulación CMY ofrecen al diseñador acceso inmediato a la impresionante matriz de color LED.
Precio a consultar
Descargas
| Parámetro | Valor |
|---|---|
| CRI | 92 |
| Peso | 25.9 kg |
| Emisores | Red / Green / Blue / Mint / Amber |
| Potencia | 800 W |
| Revisión | 26-13-05 Release |
| Pan / Tilt | 630° / 250° |
| Canales DMX | 38 / 40 / 57 / 61 |
| Dimensiones | 281 × 102 × 457 mm |
| Tipo de haz | Spot |
| Nombre corto | FuzeMaxProf |
| Nombre largo | Fuze Max Profile |
| Versión GDTF | 1.2 |
| Flujo luminoso | 14 000 lm |
| Rueda de gobos | 7 gobos + open |
| Ángulo de haz | 7–53° (zoom) |
| UUID del equipo | 56CC66FD-3926-4052-8F90-EFD843A38CB3 |
| Características | Dimmer / Shutter-Strobe / Additive color mixing / CMY color mixing / Color wheel / Color temperature control / Gobo wheel / Rotating gobo / Animation wheel / Prism / Frost / Iris / Zoom / Focus / Framing / Pan / Tilt |
| Temperatura de color | 6500 K |
| Temperatura de funcionamiento | -10 to 45 °C |
| Modos DMX | Standard Pan540 · 40 ch | Extended Pan540 · 61 ch | CMY Pan540 · 38 ch | CMY Extended Pan540 · 57 ch | Extended Pan630 · 61 ch | Standard Pan630 · 40 ch | CMY Pan630 · 38 ch | CMY Extended Pan630 · 57 ch |
Datos actualizados
🔍
