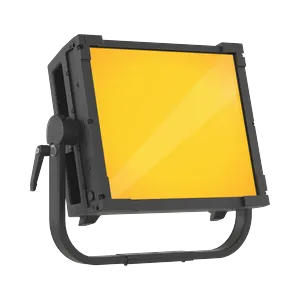

Prolights EclPanelIPSoft1x1
PROLIGHTS-109295

Prolights EclPanelIPSoft1x1

El EclPanel IPSoft1x1 es una luz suave (Soft Light) IP65 en formato 1x1, que ofrece una gran calidad de luz en cualquier condición meteorológica. La gama EclPanel IPSoft está diseñada con una fuente de luz LED de 6 colores controlable en 4 secciones, lo que maximiza el flujo luminoso y proporciona una hermosa proyección suave con una calidad excepcional y un rico espectro de color.

Fabricante: Prolights Fuente de luz: LED Ángulo: 16–25° Consumo: 300 W
Precio a consultar
Especificaciones
ParámetroValor
CRI95
Peso12 kg
EmisoresRed_RAW / Green_RAW / Blue_RAW / Cyan_RAW / Mint_RAW / Warm White_RAW / Red_RGB / Green_RGB / Blue_RGB
Potencia300 W
RevisiónRev 004 - RAW emitters order fixed
Canales DMX1 / 2 / 4 / 6 / 8 / 11 / 12 / 16 / 17 / 19 / 21 / 25
Dimensiones64 × 289 × 472 mm
Tipo de hazWash
Nombre cortoPanelSoft1x1
Nombre largoEclPanelIPSoft1x1
Versión GDTF1.2
Flujo luminoso16 221 lm
Ángulo de haz22.9°
UUID del equipo9F17EAD0-0EA7-4F90-B4D0-4873410219E6
CaracterísticasDimmer / Shutter-Strobe / Additive color mixing / Color temperature control
Temperatura de color6500 K
Temperatura de funcionamiento-20 to 45 °C
Modos DMXUNO_1ch | DUO_2ch | IRGB_4ch | Standard_11ch | M16 - CCT + RGB 16bit_21ch | M18 - CCT + RGB + GEL 16bit_25ch | M28 - CCT + XY 16bit_17ch | M36 - RAW 16bit_19ch | PIXEL 2V · 6 ch | PIXEL 2H · 6 ch | PIXEL 4 · 12 ch | PIXEL 2V + I · 8 ch | PIXEL 2H + I · 8 ch | PIXEL 4 + I · 16 ch

Datos actualizados
