BLIZZARD-49387

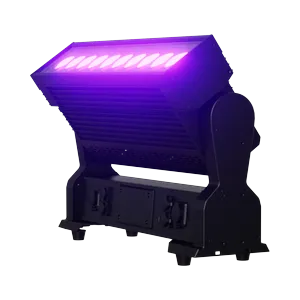

Blizzard Lighting LLC MystACL Z IP
MystACL™ Z IP ist eine outdoor-fähige (IP65) Hochleistungs-LED-Bar, bestückt mit 10* 40W OSRAM™ Ostar 4-in-1 RGBW-LEDs. Sie bietet DMX-Steuerung mit vollständigen Pixel-Mapping-Funktionen sowie einen Zoom von 3° bis 60°, wodurch Effekte erzeugt werden können, die von einem engen Lichtvorhang bis hin zu einem breiten Wash reichen. Die MystACL™ Z IP verfügt über einen motorisierten Tilt-Bereich von 210° (8-16 Bit) sowie einzigartige 3-Layer Pixel-Set & Makro-Effekte, mehrere integrierte Programme, Farb-Presets, 3/5-polige DMX- + RJ45-Ein-/Ausgangsanschlüsse (Art-Net-ready) und powerCON® TRUE1-kompatible Strom-Ein-/Ausgangsanschlüsse.
Preis auf Anfrage
Downloads
| Parameter | Wert |
|---|---|
| CRI | 61 |
| Farbrad | 17 colors + open |
| Gewicht | 16 kg |
| Kurzname | MystACL Z IP |
| Langname | Blizzard Lighting MystACL Z IP IP-65 Rated Tilt-Batten Moving Pixel Bar |
| Leistung | 450 W |
| Revision | 1.0 Manufacturer Public Release |
| Funktionen | Dimmer / Shutter-Strobe / Additive color mixing / Color temperature control / Zoom / Tilt / Effects |
| Lichtstrom | 89 590 lm |
| Pan / Tilt | — / 200° |
| Abmessungen | 162 × 290 × 550 mm |
| DMX-Kanäle | 13 / 26 / 28 / 46 |
| Fixture-UUID | F0908009-830E-4510-8911-B5ACD2D8DF93 |
| GDTF-Version | 1.2 |
| Abstrahlwinkel | 8.9–42.2° (zoom) |
| Farbtemperatur | 6122 K |
| Betriebstemperatur | -20 to 40 °C |
| Abstrahlcharakteristik | Wash |
| DMX-Modi | 13Ch Macro Mode | 26Ch 2-LED Pixel Groups | 46Ch Pixel Mapping Mode | 28Ch Pixel Set Foreground/Background Mode w/Macros |
