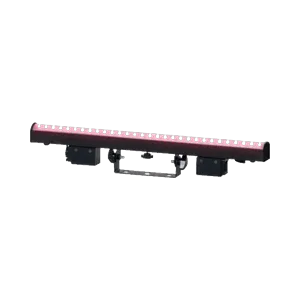

Elation Pixel Bar 30IP
ELATION-86091

Elation Pixel Bar 30IP

Die PIXEL BAR 30IP™ ist eine outdoorfähige, IP65-zertifizierte LED-Pixel-Bar mit (30) Drei-Farben-RGB-SMD-LEDs, einem Pixelabstand von 16 mm, einer Wiederholrate von 44.000 Hz für flimmerfreien Betrieb bei TV- und Film-Broadcast-Anwendungen und hat eine Länge von 0,5 Metern (1,6 Fuß). Jede Pixel-Bar ist in einem leichten, IP65-zertifizierten Aluminiumgehäuse mit magnetischen Endkappen untergebracht, die einen nahtlosen Pixelabstand von Ende zu Ende ermöglichen, und verfügt über einen integrierten verstellbaren Montagebügel, eine Öse für ein Sicherheitsseil sowie quadratische und abgerundete frostierte Linsenaufsätze.

Hersteller: Elation Lichtquelle: LED Abstrahlwinkel: 16–25° Leistungsaufnahme: 240 W
Preis auf Anfrage
Spezifikationen
ParameterWert
CRI100
EmitterRed / Green / Blue
Gewicht0.7 kg
KurznamePixBr30
LangnamePixel Bar 30IP
Leistung240 W
Revision25-11-02 First Release
FunktionenDimmer / Additive color mixing
Lichtstrom4 920 lm
Abmessungen36 × 83 × 488 mm
DMX-Kanäle3 / 6 / 9 / 15 / 18 / 30 / 45 / 90
Fixture-UUIDD5D7F1B5-9B44-4A1C-9F4E-D1834B8FE316
GDTF-Version1.2
Abstrahlwinkel25°
Farbtemperatur6000 K
Betriebstemperatur0 to 40 °C
AbstrahlcharakteristikRectangle
DMX-Modi30x1 · 90 ch | 15x2 · 45 ch | 10x3 · 30 ch | 5x6 · 18 ch | 1x30 · 3 ch | 2x15 · 6 ch | 3x10 · 9 ch | 6x5 · 15 ch
