Elation Seven Batten 72
ELATION-58188

Elation Seven Batten 72

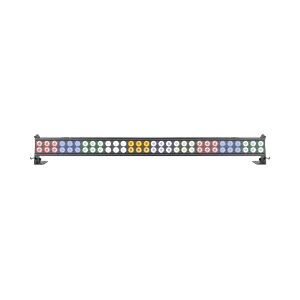

Die SEVEN BATTEN 72™ ist eine 6 Fuß (1,8 m) lange 7-Farb-Batten-Wash-Leuchte mit (60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Zu den Funktionen gehören die individuelle Steuerung von Farbton, Sättigung und Intensität, ein spezieller RGB SEVEN 3-Kanal-Modus (RGB + dynamisches Weiß, Amber, Lime und UV), 10 Pixel-Mapping-Zonen mit Pixel-Flip-Modus, stufenlose Farbmischung, 12 interne Programme mit Geschwindigkeits- und Fade-Steuerung, 64 eindeutige 7-Farb-Makros, wählbare Dimmerkurvenmodi, einstellbare LED-Auffrischrate und Gamma-Helligkeit für flackerfreien Betrieb bei TV und FILM, DMX-, Art-Net-, Kling-Net- und RDM-Protokollunterstützung (Remote Device Management), 3/5-poliges DMX, RJ45-Ethernet und verriegelbare Stromkabel-In/Out-Anschlüsse, zwei um 220° manuell neigbare Montagehalterungen, OLED-Menüanzeige mit einem 4-Tasten-Bedienfeld, ein Weitbereichs-Universalnetzteil mit automatischer Umschaltung (100-240V), ein robustes, pulverbeschichtetes Aluminium-Druckgussgehäuse und ein integrierter Gel- / Frostfilter-Einschub.

Hersteller: Elation Lichtquelle: LED Abstrahlwinkel: 16–25° Leistungsaufnahme: 1500 W
Preis auf Anfrage
Spezifikationen
ParameterWert
CRI82
EmitterRed / Green / Blue / Lime / Amber / UV / White
Farbrad64 colors + open
Gewicht26.3 kg
KurznameSEVBAT72
LangnameSeven Batten 72
Leistung1500 W
Revision2024-22-02 First Release
FunktionenDimmer / Shutter-Strobe / Additive color mixing / Color wheel / Effects
Lichtstrom14 670 lm
Abmessungen140 × 130 × 1790 mm
DMX-Kanäle3 / 4 / 7 / 10 / 14 / 15 / 16 / 38 / 70 / 72 / 78
Fixture-UUIDF914652C-1A59-4F8D-8163-048CEC554BAF
GDTF-Version1.2
Abstrahlwinkel23°
Farbtemperatur6500 K
Betriebstemperatur-15 to 45 °C
AbstrahlcharakteristikWash
DMX-ModiRGB 3CH | RGBSeven 3CH | 8Bit 7CH | 16Bit 14CH | 16bit + Dim 16CH | Ext 15CH | Cells 70CH | Ext Cells 78CH | HSI 4CH | HSI Mast 10CH | HSI Cell 38CH | Cells Dim 72CH
