Prolights EclPanelIPHard1x1
PROLIGHTS-109299

Prolights EclPanelIPHard1x1

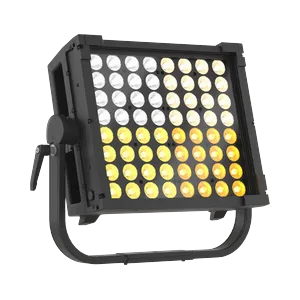

Das EclPanel IPHard1x1 ist ein IP65-Hard-Light im 1x1-Format mit einer LED-Quelle, die für Film-Anwendungen mit hoher Reichweite optimiert ist. Dieses Gerät wurde entwickelt, um unter allen Wetterbedingungen erstklassige Beleuchtung zu liefern. Sein optisches System ist mit einem 6-Farben-LED-Array und Kollimatorlinsen ausgestattet, die in 4 Sektionen ansteuerbar sind und einen nativen Abstrahlwinkel von 20° erzeugen. Diese Konfiguration erhöht die Lux-Intensität für Anwendungen mit hoher Reichweite und erweitert das Lichtspektrum, was zu einer herausragenden Lichtqualität führt. Das EclPanel IPHard kann durch das Anbringen optischer Modifikatoren an den Zubehörpunkten in eine Soft-Light-Quelle verwandelt werden.

Hersteller: Prolights Lichtquelle: LED Abstrahlwinkel: 16–25° Leistungsaufnahme: 300 W
Preis auf Anfrage
Spezifikationen
ParameterWert
CRI95
EmitterRed_RAW / Green_RAW / Blue_RAW / Royal Blue_RAW / Mint_RAW / Warm White_RAW / Red_RGB / Green_RGB / Blue_RGB
Gewicht12.8 kg
KurznamePanelHard1x1
LangnameEclPanelIPHard1x1
Leistung300 W
RevisionRev 008 - RAW emitters order fixed
FunktionenDimmer / Shutter-Strobe / Additive color mixing / Color temperature control
Lichtstrom16 221 lm
Abmessungen64 × 289 × 472 mm
DMX-Kanäle1 / 2 / 4 / 6 / 8 / 11 / 12 / 16 / 17 / 19 / 21 / 25
Fixture-UUID5287A482-7023-4E46-895F-FD0BC0AC5295
GDTF-Version1.2
Abstrahlwinkel22.9°
Farbtemperatur6500 K
Betriebstemperatur-20 to 45 °C
AbstrahlcharakteristikWash
DMX-ModiUNO_1ch | DUO_2ch | IRGB_4ch | Standard_11ch | M16 - CCT + RGB 16bit_21ch | M18 - CCT + RGB + GEL 16bit_25ch | M28 - CCT + XY 16bit_17ch | M36 - RAW 16bit_19ch | PIXEL 2V · 6 ch | PIXEL 2H · 6 ch | PIXEL 4 · 12 ch | PIXEL 2V + I · 8 ch | PIXEL 2H + I · 8 ch | PIXEL 4 + I · 16 ch
