ASTERA-62996

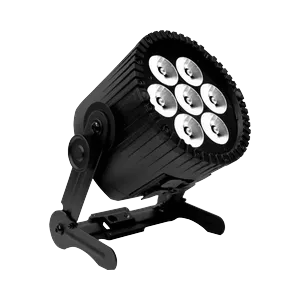

Astera LED Technology AX9 PowerPAR
Der AX9 nutzt das erfolgreiche 3-in-1-Konzept des AX5, das den Einsatz als Akku-Scheinwerfer und elegantes Uplight sowie als kabelgebundener PAR-Scheinwerfer für längere oder größere Installationen ermöglicht. Dies macht ihn zu einem extrem kosteneffizienten Scheinwerfer und hält Ihre Investition auf einem Minimum. Der AX9 bietet extreme Helligkeit in einem kompakten und leichten Gehäuse und liefert dank seiner Titan LED Engine dennoch branchenführende Farben und Weißtöne.
Preis auf Anfrage
Downloads
| Parameter | Wert |
|---|---|
| CRI | 100 |
| Emitter | Red / Green / Blue / White Point |
| Farbrad | 150 colors + open |
| Gewicht | 5.7 kg |
| Kurzname | AX9 |
| Langname | AX9 PowerPAR |
| Leistung | 70 W |
| Revision | VWX 2025 Fix |
| Funktionen | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control |
| Lichtstrom | 3 214 lm |
| Abmessungen | 185 × 152 × 185 mm |
| DMX-Kanäle | 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 21 |
| Fixture-UUID | BB8DEE4B-A7BA-4896-8247-E6164A4E949C |
| GDTF-Version | 1.2 |
| Abstrahlwinkel | 13° |
| Farbtemperatur | 5500 K |
| Betriebstemperatur | 0 to 40 °C |
| Abstrahlcharakteristik | Wash |
| DMX-Modi | 1: RGB · 3 ch | 2: RGBW · 4 ch | 3: RGBAW · 5 ch | 4: DIM RGB · 4 ch | 5: DIM RGBW · 5 ch | 6: DIM RGBAW · 6 ch | 7: RGB CCT DIM IND · 6 ch | 8: RGBS · 4 ch | 9: RGBWS · 5 ch | 10: RGBAWS · 6 ch | 11: DIM RGBS · 5 ch | 12: DIM RGBWS · 6 ch | 13: DIM RGBAWS · 7 ch | 14: RGB CCT DIM IND S · 7 ch | 15: Effect Mode Fix · 13 ch | 16: Effect Mode RGB · 21 ch | 89: D CCT GM CRO RGB · 7 ch | 90: D CCT GM HUE SAT · 5 ch | 91: D16 CCT GM C RGB · 8 ch | 92: D16 CCT GM H SAT · 7 ch | 93: D16 X Y · 6 ch | 94: D CCT GM CRO RGB S · 8 ch | 95: D CCT GM HUE SAT S · 6 ch | 96: D16 CCT GM H SAT S · 8 ch | 97: D16 X Y S · 7 ch | 137: D16 CCT GM C RGB S · 9 ch | 168: D CCT GM C CRO XY · 8 ch | 169: D16 CCT GM C CRO XY · 9 ch | 170: D CCT GM C CRO XY S · 9 ch | 171: D16 CCT GM C CRO XY S · 10 ch |
Daten aktualisiert
🔍
