ASTERA-63002

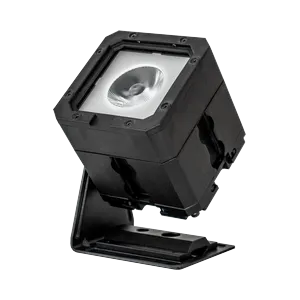

Astera LED Technology PB15 PixelBrick
Lernen Sie unser Mehrzweck-Licht der nächsten Generation kennen. Neben der Funktion als akkubetriebenes Uplight und Spotlight mit 5 verschiedenen Abstrahloptionen können mehrere PixelBricks miteinander verbunden werden, um Cluster und Formen zu bilden. Mit etwa 10 cm Seitenlänge und 1 kg Gewicht ist es klein und leicht, bietet aber dennoch eine leistungsstarke Lichtausgabe von hoher Qualität, die den höchsten Ansprüchen von Film-, TV- und Bühnenkunden gerecht wird.
Preis auf Anfrage
Downloads
| Parameter | Wert |
|---|---|
| CRI | 100 |
| Emitter | Red / Green / Blue / White Point |
| Farbrad | 150 colors + open |
| Gewicht | 1.1 kg |
| Kurzname | PixelBrick |
| Langname | PB15 PixelBrick |
| Leistung | 12 W |
| Revision | tested by Astera / V3 |
| Funktionen | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control |
| Lichtstrom | 475 lm |
| Abmessungen | 89 × 93 × 89 mm |
| DMX-Kanäle | 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 21 |
| Fixture-UUID | 71E6CBE1-30E6-4ADE-8E63-CB0DD6F440ED |
| GDTF-Version | 1.2 |
| Abstrahlwinkel | 13° |
| Farbtemperatur | 5500 K |
| Betriebstemperatur | 0 to 40 °C |
| Abstrahlcharakteristik | Wash |
| DMX-Modi | 1: RGB · 3 ch | 2: RGBW · 4 ch | 3: RGBAW · 5 ch | 4: DIM RGB · 4 ch | 5: DIM RGBW · 5 ch | 6: DIM RGBAW · 6 ch | 7: RGB CCT DIM IND · 6 ch | 8: RGBS · 4 ch | 9: RGBWS · 5 ch | 10: RGBAWS · 6 ch | 11: DIM RGBS · 5 ch | 12: DIM RGBWS · 6 ch | 13: DIM RGBAWS · 7 ch | 14: RGB CCT DIM IND S · 7 ch | 15: Effect Mode Fix · 13 ch | 16: Effect Mode RGB · 21 ch | 89: D CCT GM CRO RGB · 7 ch | 90: D CCT GM HUE SAT · 5 ch | 91: D16 CCT GM C RGB · 8 ch | 92: D16 CCT GM H SAT · 7 ch | 93: D16 X Y · 6 ch | 94: D CCT GM CRO RGB S · 8 ch | 95: D CCT GM HUE SAT S · 6 ch | 96: D16 CCT GM H SAT S · 8 ch | 97: D16 X Y S · 7 ch | 137: D16 CCT GM C RGB S · 9 ch | 168: D CCT GM C CRO XY · 8 ch | 169: D16 CCT GM C CRO XY · 9 ch | 170: D CCT GM C CRO XY S · 9 ch | 171: D16 CCT GM C CRO XY S · 10 ch |
