ACME-71618

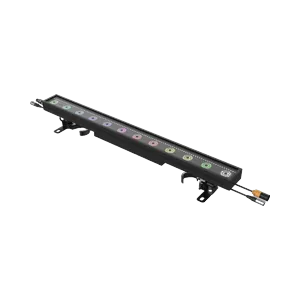

ACME FLANDINA 22 IP (BAR 22 IP)
ACME FLANDINA 22 IP(BAR 22 IP)12*10W
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 100 |
| Weight | 6.8 kg |
| Emitters | Red / Green / Blue / White / Amber |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control |
| Revision | ACME FLANDINA 22 IP (BAR 22 IP) |
| Beam type | Wash |
| Long name | FLANDINA 22 IP (BAR 22 IP) |
| Beam angle | 30–116° |
| Dimensions | 90 × 48 × 998 mm |
| Short name | (BAR 22 IP) |
| Color wheel | 33 colors + open |
| DMX channels | 6 / 7 / 8 / 10 / 15 / 16 / 72 / 75 |
| Fixture UUID | 1C124AE9-2AFD-478C-9EB3-6A7853EF5C92 |
| GDTF version | 1.2 |
| Luminous flux | 29 688 lm |
| Color temperature | 6000 K |
| Operating temperature | -10 to 40 °C |
| DMX modes | Mode 1 75 DMX · 75 ch | Mode 2 72 DMX · 72 ch | Mode 3 16 DMX · 16 ch | Mode 4 15 DMX · 15 ch | Mode 5 10 DMX · 10 ch | Mode 6 8 DMX · 8 ch | Mode 7 7 DMX · 7 ch | Mode 8 6 DMX · 6 ch |
