ADJ-137975

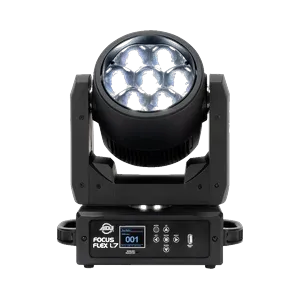

ADJ Focus Flex
The Focus Flex offers lighting designers the creative flexibility of generating vibrant washes, punchy beams, and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently, it offers a motorized zoom function providing the versatility of a variable field angle of between 6 and 57-degrees. With a variety of DMX mode options appropriate to different applications, it offers virtual CMY color mixing and virtual foreground and background color wheel control as well as a choice of seven different DMX modes.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 83 |
| Power | 280 W |
| Weight | 7 kg |
| Emitters | Red / Green / Blue / Lime |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / CMY color mixing / Color wheel / Color temperature control / Zoom / Pan / Tilt / Effects |
| Revision | Release 26-09-04 |
| Beam type | Wash |
| Long name | Focus Flex |
| Beam angle | 5–50° (zoom) |
| Dimensions | 180 × 90 × 280 mm |
| Pan / Tilt | 540° / 265° |
| Short name | FcsFlex |
| Color wheel | 65 colors + open |
| DMX channels | 16 / 25 / 28 / 34 / 42 / 50 |
| Fixture UUID | 8E2FB153-88E3-4A36-BF9D-03ADE7497EDA |
| GDTF version | 1.2 |
| Luminous flux | 14 000 lm |
| Color temperature | 8000 K |
| Operating temperature | -10 to 45 °C |
| DMX modes | Basic · 16 ch | Standard · 25 ch | Extended 34 · 34 ch | Extended 42 · 42 ch | Extended 50 · 50 ch | Std CMY · 25 ch | Ext CMY · 28 ch |
