Anolis Calumma M MC
ANOLIS-97738

Anolis Calumma M MC

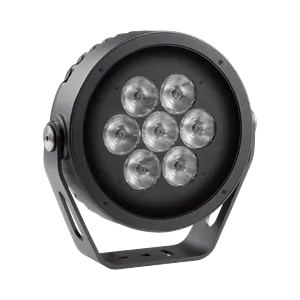

Featuring an optical design using 7 high efficacy multi-chip LEDs and available with optional LED colour variants and various beam angles, the medium-sized Calumma M MC luminaire creates powerful and beautiful light output for a spot, accent or flood lighting solution. Its durable hou- sing is built to withstand any exterior conditions, and its special finish for harsh and marine environments provides an exceptional outdoor LED luminaire in an elegant design. Additionally, Calumma M MC can be connected in long In/Out daisy-chains via an E-Box and hybrid Plug & Play connections for almost effortless installation. Complemented by wide range of accessories and control protocols, this luminaire is an effective and versatile unit to get the most out of architectural lighting applications.

Manufacturer: Anolis Source: LED Angle: 6–15° Power consumption: 30 W
Price on request
Specifications
ParameterValue
CRI85
Power30 W
Weight5.8 kg
FeaturesDimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control / Zoom / Tilt
Revision2025-05-23 Initial release
Beam typeWash
Long nameCalumma™ M MC
Beam angle9–100° (zoom)
Dimensions64 × 135 × 265 mm
Pan / Tilt— / 360°
Short nameCal M MC
Color wheel73 colors + open
DMX channels2 / 3 / 4 / 6 / 8 / 12 / 15
Fixture UUID0F1FE267-F399-4A9A-B7AC-D15F36FA054C
GDTF version1.2
Luminous flux990 lm
Color temperature3000 K
Operating temperature-20 to 40 °C
DMX modesMode 1 RGBW 8bit · 4 ch | Mode 1 RGBA 8bit · 4 ch | Mode 2 RGB 8 bit · 3 ch | Mode 3 full RGBW · 12 ch | Mode 3 full RGBA · 12 ch | Mode 4 White full control · 3 ch | Mode 5 Reduced RGBW · 6 ch | Mode 5 Reduced RGBA · 6 ch | Mode 6 Reduced RGBA + white control · 8 ch | Mode 7 full RGBW + virtual colour wheel · 15 ch | Mode 7 full RGBA + virtual colour wheel · 15 ch | Mode 6 Reduced RGBW + white control · 8 ch | Mode 11 White selection + dim · 3 ch | Mode 12 WW + CW · 4 ch | Mode 13 dimmer · 2 ch
