ASTERA-62995

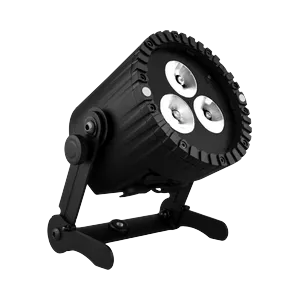

Astera LED Technology AX5 TriplePAR
Optimized for a fast return of investment, this stage lighting fixture replaces your wireless and wired PARs as well as battery uplight. It’s the ultimate tool for entertainment professionals.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 100 |
| Power | 45 W |
| Weight | 3.4 kg |
| Emitters | Red / Green / Blue / White Point |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control |
| Revision | VWX 2025 Fix |
| Beam type | Wash |
| Long name | AX5 TriplePAR |
| Beam angle | 13° |
| Dimensions | 153 × 141 × 153 mm |
| Short name | AX5 |
| Color wheel | 150 colors + open |
| DMX channels | 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 21 |
| Fixture UUID | 553B3D07-9437-4085-A852-1239242A20DD |
| GDTF version | 1.2 |
| Luminous flux | 1 413 lm |
| Color temperature | 5500 K |
| Operating temperature | 0 to 40 °C |
| DMX modes | 1: RGB · 3 ch | 2: RGBW · 4 ch | 3: RGBAW · 5 ch | 4: DIM RGB · 4 ch | 5: DIM RGBW · 5 ch | 6: DIM RGBAW · 6 ch | 7: RGB CCT DIM IND · 6 ch | 8: RGBS · 4 ch | 9: RGBWS · 5 ch | 10: RGBAWS · 6 ch | 11: DIM RGBS · 5 ch | 12: DIM RGBWS · 6 ch | 13: DIM RGBAWS · 7 ch | 14: RGB CCT DIM IND S · 7 ch | 15: Effect Mode Fix · 13 ch | 16: Effect Mode RGB · 21 ch | 89: D CCT GM CRO RGB · 7 ch | 90: D CCT GM HUE SAT · 5 ch | 91: D16 CCT GM C RGB · 8 ch | 92: D16 CCT GM H SAT · 7 ch | 93: D16 X Y · 6 ch | 94: D CCT GM CRO RGB S · 8 ch | 95: D CCT GM HUE SAT S · 6 ch | 96: D16 CCT GM H SAT S · 8 ch | 97: D16 X Y S · 7 ch | 137: D16 CCT GM C RGB S · 9 ch | 168: D CCT GM C CRO XY · 8 ch | 169: D16 CCT GM C CRO XY · 9 ch | 170: D CCT GM C CRO XY S · 9 ch | 171: D16 CCT GM C CRO XY S · 10 ch |
Data updated
🔍
