AYRTON-149975

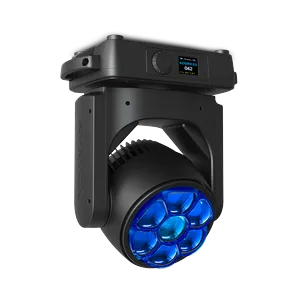

Ayrton Zonda 3 FX
LED moving head wash light with RGBW colour mixing, 3–50° zoom and 7 DMX modes.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 100 |
| Power | 280 W |
| Weight | 11.1 kg |
| Emitters | Red / Green / Blue / White |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control / Zoom / Pan / Tilt |
| Revision | V1.81 Corrected_Factory_Tilt |
| Beam type | Wash |
| Long name | Zonda 3 FX |
| Beam angle | 3–50° (zoom) |
| Dimensions | 207 × 82 × 365 mm |
| Pan / Tilt | 542.1° / 542.1° |
| Short name | ZFX3 |
| Color wheel | 93 colors + open |
| DMX channels | 26 / 46 / 50 / 79 / 493 |
| Fixture UUID | D7B578E3-E689-4B8B-8467-FCF5A1B74D3F |
| GDTF version | 1.2 |
| Luminous flux | 7 000 lm |
| Color temperature | 6000 K |
| Operating temperature | -10 to 45 °C |
| DMX modes | Extended Pixel 1 · 79 ch | Standard · 50 ch | Extended Pixel 2 · 79 ch | Extended Pixel 1 + Liquid · 493 ch | Extended Pixel 2 + Liquid · 493 ch | Basic · 26 ch | Extended Ring · 46 ch |
Data updated
🔍
