BRITEQ-58410

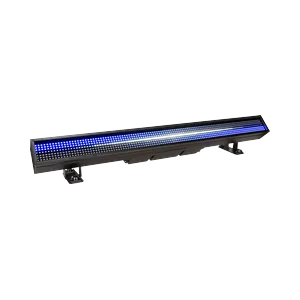

Briteq BTI-LIGHTSTRIKE IP66
An extremely powerful and versatile hybrid LED Pixel mapping bar with 112 super bright CW leds (16 zones) and 672 RGB leds (32 zones). Art-Net / sACN control: excellent for TV-studios, concert stages, …
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 100 |
| Power | 538 W |
| Weight | 9 kg |
| Emitters | Red / Green / Blue / Cool White |
| Features | Dimmer / Additive color mixing / Color wheel / Effects |
| Revision | Added identified channels strobe mode 123ch pix V2 |
| Beam type | Wash |
| Long name | BTI-LIGHTSTRIKE IP66 |
| Beam angle | 116° |
| Dimensions | 84 × 81 × 1000 mm |
| Short name | LiStrkeIP |
| Color wheel | 32 colors + open |
| DMX channels | 6 / 15 / 17 / 21 / 33 / 39 / 49 / 65 / 81 / 113 / 123 |
| Fixture UUID | 0C02A65B-7ED0-4FEB-8DDB-8D75BCB6DFAA |
| GDTF version | 1.2 |
| Luminous flux | 45 338 lm |
| Color temperature | 6000 K |
| Operating temperature | 0 to 40 °C |
| DMX modes | 6Ch | 15Ch | 21Ch | 39Ch | 17Ch Pix | 33Ch Pix | 65Ch Pix | 113Ch Pix | 123Ch Pix | 33Ch Pix Full | 49Ch Pix Full | 81Ch Pix Full |
