CHAUVET-97420

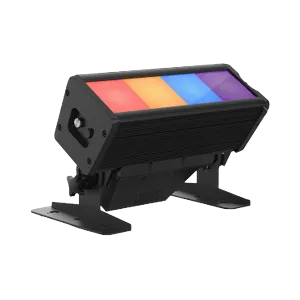

Chauvet Professional COLORado Solo Batten 4
LED pixel bar with RGBWA colour mixing, a 18° beam, IP65 rated and 18 DMX modes.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 77 |
| Power | 12 W |
| Weight | 7.8 kg |
| Emitters | Red / Green / Blue / Amber / White / All on white |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color temperature control |
| Revision | Beta 1.0.1 |
| Beam type | Wash |
| Long name | COLORado Solo Batten 4 |
| Beam angle | 18° |
| Dimensions | 229 × 102 × 348 mm |
| Short name | SoloBatten4 |
| Color wheel | 8 colors + open |
| DMX channels | 3 / 4 / 5 / 8 / 9 / 10 / 12 / 16 / 20 / 27 / 29 / 31 / 35 / 40 / 56 |
| Fixture UUID | 1938D72A-5A93-11E9-953D-525400685065 |
| GDTF version | 1.2 |
| Luminous flux | 14 920 lm |
| Color temperature | 8000 K |
| Operating temperature | -20 to 45 °C |
| DMX modes | 4-Cell HSIC · 29 ch | 4-Cell RGBAW FULL · 56 ch | 4-Cell RGBAW Fine · 40 ch | 4-Cell RGBAW EXT · 35 ch | 4-Cell RGBAW · 20 ch | 4-Cell RGBA EXT · 31 ch | 4-Cell RGBA · 16 ch | 4-Cell RGB EXT · 27 ch | 4-Cell RGB · 12 ch | 1-Cell HSIC · 8 ch | 1-Cell RGBAW FULL · 16 ch | 1-Cell RGBAW Fine · 10 ch | 1-Cell RGBAW EXT · 10 ch | 1-Cell RGBAW · 5 ch | 1-Cell RGBA EXT · 9 ch | 1-Cell RGBA · 4 ch | 1-Cell RGB EXT · 8 ch | 1-Cell RGB · 3 ch |
