CHROMA-145673

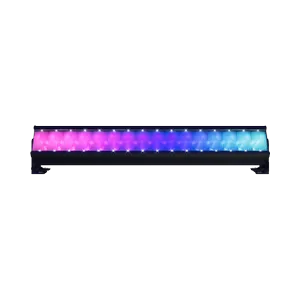

Chroma-Q Color Force 3 48
LED pixel bar with RGBWA colour mixing, a 22° beam and 70 DMX modes.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 90 |
| Power | 960 W |
| Weight | 23.5 kg |
| Features | Dimmer / Additive color mixing / Color temperature control / Effects |
| Revision | Rev 2 Combined |
| Beam type | Rectangle |
| DMX modes | RGB - 8Bit (3 ch) / RGB - 16Bit (6 ch) / RGBA - 8Bit (4 ch) / RGBA - 16Bit (8 ch) / RGB Compact - 8Bit (6 ch) / RGB Compact - 16Bit (12 ch) / RGBA Compact - 8Bit (7 ch) / RGBA Compact - 16Bit (14 ch) / RGB Extended - 8Bit (7 ch) / RGB Extended - 16Bit (14 ch) / RGBA Extended - 8Bit (8 ch) / RGBA Extended - 16Bit (16 ch) / SparQle 8Bit (2 ch) / SparQle 16Bit (4 ch) / CONTROL (1 ch) / Effects (10 ch) / RGB 8Bit Group By 1 (48 ch) / RGB 16Bit Group By 1 (96 ch) / RGBA 8Bit Group By 1 (64 ch) / RGBA 16Bit Group By 1 (128 ch) / RGB Compact 8Bit Group By 1 (51 ch) / RGB Compact 16Bit Group By 1 (102 ch) / RGBA Compact 8Bit Group By 1 (67 ch) / RGBA Compact 16Bit Group By 1 (134 ch) / RGB Extended 8Bit Group By 1 (112 ch) / RGB Extended 16Bit Group By 1 (224 ch) / RGBA Extended 8Bit Group By 1 (128 ch) / RGBA Extended 16Bit Group By 1 (256 ch) / SparQle 8Bit Group By 1 (32 ch) / SparQle 16Bit Group By 1 (64 ch) / RGB 8Bit Group By 4 (12 ch) / RGB 16Bit Group By 4 (24 ch) / RGBA 8Bit Group By 4 (16 ch) / RGBA 16Bit Group By 4 (32 ch) / RGB Compact 8Bit Group By 4 (15 ch) / RGB Compact 16Bit Group By 4 (30 ch) / RGBA Compact 8Bit Group By 4 (19 ch) / RGBA Compact 16Bit Group By 4 (38 ch) / RGB Extended 8Bit Group By 4 (28 ch) / RGB Extended 16Bit Group By 4 (56 ch) / RGBA Extended 8Bit Group By 4 (32 ch) / RGBA Extended 16Bit Group By 4 (64 ch) / SparQle 8Bit Group By 4 (8 ch) / SparQle 16Bit Group By 4 (16 ch) / RGB 8Bit Group By All (3 ch) / RGB 16Bit Group By All (6 ch) / RGBA 8Bit Group By All (4 ch) / RGBA 16Bit Group By All (8 ch) / RGB Compact 8Bit Group By All (6 ch) / RGB Compact 16Bit Group By All (12 ch) / RGBA Compact 8Bit Group By All (7 ch) / RGBA Compact 16Bit Group By All (14 ch) / RGB Extended 8Bit Group By All (7 ch) / RGB Extended 16Bit Group By All (14 ch) / RGBA Extended 8Bit Group By All (8 ch) / RGBA Extended 16Bit Group By All (16 ch) / SparQle 8Bit Group By All (2 ch) / SparQle 16Bit Group By All (4 ch) / RGB 8Bit Combined Mode (16 ch) / RGB 16Bit Combined Mode (21 ch) / RGBA 8Bit Combined Mode (17 ch) / RGBA 16Bit Combined Mode (23 ch) / RGB Compact Combined 8Bit Mode (19 ch) / RGB Compact Combined 16Bit Mode (27 ch) / RGBA Compact Combined 8Bit Mode (20 ch) / RGBA Compact Combined 16Bit Mode (29 ch) / RGB Extended 8Bit Combined Mode (20 ch) / RGB Extended 16Bit Combined Mode (29 ch) / RGBA Extended 8Bit Combined Mode (21 ch) / RGBA Extended 16Bit Combined Mode (31 ch) |
| Long name | Color Force 3 48 |
| Beam angle | 22° |
| Dimensions | 139 × 179 × 1192 mm |
| Short name | ColorForce348 |
| DMX channels | 1 / 2 / 3 / 4 / 6 / 7 / 8 / 10 / 12 / 14 / 15 / 16 / 17 / 19 / 20 / 21 / 23 / 24 / 27 / 28 / 29 / 30 / 31 / 32 / 38 / 48 / 51 / 56 / 64 / 67 / 96 / 102 / 112 / 128 / 134 / 224 / 256 |
| Fixture UUID | 6DE324FB-F474-4321-A111-5AEF209B993F |
| GDTF version | 1.2 |
| Luminous flux | 1 344 000 lm |
| Color temperature | 7100 K |
| Operating temperature | 0 to 40 °C |
Data updated
🔍
