CHROMA-132479

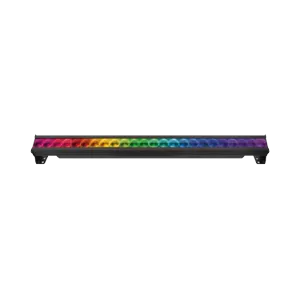

Chroma-Q Color Force II 72 Plus
LED pixel bar with RGBA colour mixing, a 26° beam and 145 DMX modes.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 92 |
| Power | 480 W |
| Weight | 24 kg |
| Features | Dimmer / Shutter-Strobe / Additive color mixing |
| Revision | Release 1 |
| Beam type | Wash |
| DMX modes | RGBAx24 Strobe Off (4 ch) / RGBx24 Strobe Off (3 ch) / HSIx24 Strobe Off (3 ch) / RGBAx12 Strobe Off (8 ch) / RGBx12 Strobe Off (6 ch) / HSIx12 Strobe Off (6 ch) / RGBAx8 Strobe Off (12 ch) / RGBx8 Strobe Off (9 ch) / HSIx8 Strobe Off 1 (9 ch) / RGBAx6 Strobe Off (16 ch) / RGBx6 Strobe Off (12 ch) / HSIx6 Strobe Off (12 ch) / RGBAx4 Strobe Off (24 ch) / RGBx4 Strobe Off (18 ch) / HSIx4 Strobe Off (18 ch) / RGBAx3 Strobe Off (32 ch) / RGBx3 Strobe Off (24 ch) / HSIx3 Strobe Off (24 ch) / RGBAx2 Strobe Off (48 ch) / RGBx2 Strobe Off (36 ch) / HSIx2 Strobe Off (36 ch) / RGBAx1 Strobe Off (96 ch) / RGBx1 Strobe Off (72 ch) / HSIx1 Strobe Off (72 ch) / RGBA Od Ev Strobe Off (8 ch) / RGB Od Ev Strobe Off (6 ch) / HSI Od Ev Strobe Off (6 ch) / RGBA Skp2 Strobe Off (12 ch) / RGB Skp2 Strobe Off (9 ch) / HSI Skp2 Strobe Off (9 ch) / RGBA Skp3 Strobe Off (16 ch) / RGB skp3 Strobe Off (12 ch) / HSI Skp3 Strobe Off (12 ch) / RGBA Skp6 Strobe Off (24 ch) / RGB Skp6 Strobe Off (18 ch) / HSI Skp6 Strobe Off (18 ch) / Look Sel (1 ch) / RGBAx24 Strobe On (6 ch) / RGBx24 Strobe On (5 ch) / HSIx24Strobe On (5 ch) / RGBAx12 Strobe On (10 ch) / RGBx12 Strobe On (8 ch) / HSIx12 Strobe On (8 ch) / RGBA x8 Strobe On (14 ch) / RGB x8 Strobe On (11 ch) / HSIx8 Strobe Off (11 ch) / RGBAx6 Strobe On (18 ch) / RGBx6 Strobe On (14 ch) / HSIx6 Strobe On (14 ch) / RGBA x4 Strobe On (26 ch) / RGB x4 Strobe On (20 ch) / HSIx4 Strobe On (20 ch) / RGBA x3 Strobe On (34 ch) / RGB x3 Strobe On (26 ch) / HSI x3 Strobe On (26 ch) / RGBAx2 Strobe On (50 ch) / RGB x2 Strobe On (38 ch) / HSI x2 Strobe On (38 ch) / RGBA x1 Strobe On (98 ch) / RGBx1 Strobe On (74 ch) / HSIx1 Strobe On (74 ch) / RGBA OdEv Strobe On (10 ch) / RGB OdEv Strobe On (8 ch) / HSI OdEv Strobe On (8 ch) / RGBA Skp2 Strobe On (14 ch) / RGB Skp2 Strobe On (11 ch) / HSI Skp2 Strobe On (11 ch) / RGBA Skp3 Strobe On (18 ch) / RGB Skp3 Strobe On (14 ch) / HSI Skp3 Strobe On (14 ch) / RGBA Skp6 Strobe On (26 ch) / RGB Skp6 Strobe On (20 ch) / HSI Skp6 Strobe On (20 ch) / RGBAx24 Strobe On Top (10 ch) / RGBx24 Strobe On Top (8 ch) / HSIx24 Strobe On Top (8 ch) / RGBAx12 Strobe On Top 1 (14 ch) / RGBAx12 Strobe On Top (11 ch) / HSIx12 Strobe On Top (11 ch) / RGBAx8 Strobe On Top (18 ch) / RGBx8 Strobe On Top (14 ch) / HSIx8 Strobe On Top (14 ch) / RGBAx6 Strobe On Top (22 ch) / RGBx6 Strobe On Top (17 ch) / HSIx6 Strobe On Top (17 ch) / RGBAx4 Strobe On Top (30 ch) / RGBx4 Strobe On Top (23 ch) / HSIx4 Strobe On Top (23 ch) / RGBAx3 Strobe On Top (38 ch) / RGBx3 Strobe On Top (29 ch) / HSIx3 Strobe On Top 1 (29 ch) / RGBAx2 Strobe On Top (54 ch) / RGBx2 Strobe On Top (41 ch) / HSIx2 Strobe On Top (41 ch) / RGBAx1 Strobe On Top (102 ch) / RGBx1 Strobe On Top (77 ch) / HSIx1 Strobe On Top (77 ch) / RGBA Od Ev Strobe On Top (14 ch) / RGB Od Ev Strobe On Top (11 ch) / HSI Od Ev Strobe On Top (11 ch) / RGBA Skp2 Strobe On Top (18 ch) / RGB Skp2 Strobe On Top (14 ch) / HSI Skp2 Strobe On Top (14 ch) / RGBA Skp3 Strobe On Top (22 ch) / RGB Skp3 Strobe On Top (17 ch) / HSI Skp3 Strobe On Top (17 ch) / RGBA Skp6 Strobe On Top (30 ch) / RGB Skp6 Strobe On Top (23 ch) / HSI Skp6 Strobe On Top (23 ch) / RGBAx24 Strobe Random (11 ch) / RGBx24 Strobe Random (9 ch) / HSIx24 Strobe Random (9 ch) / RGBAx12 Strobe Random (15 ch) / RGBx12 Strobe Random (12 ch) / HSIx12 Strobe Random (12 ch) / RGBAx8 Strobe Random (19 ch) / RGBx8 Strobe Random (15 ch) / HSIx8 Strobe Random (15 ch) / RGBAx6 Strobe Random (23 ch) / RGBx6 Strobe Random (18 ch) / HSIx6 Strobe Random (18 ch) / RGBAx4 Strobe Random (31 ch) / RGBx4 Strobe Random (24 ch) / HSIx4 Strobe Rabdom (24 ch) / RGBAx3 Strobe Random (39 ch) / RGBx3 Strobe Random (30 ch) / HSIx3 Strobe On Top (30 ch) / RGBAx2 Strobe Random (55 ch) / RGBx2 Strobe Random (42 ch) / HSIx2 Strobe Random (42 ch) / RGBAx1 Strobe Random (103 ch) / RGBx1 Strobe Random (78 ch) / HSIx1 Strobe Random (78 ch) / RGBA Od Ev Strobe Random (15 ch) / RGB Od Ev Strobe Random (12 ch) / HSI Od Ev Strobe Random (12 ch) / RGBA Skp2 Strobe Random (19 ch) / RGB Skp2 Strobe Random (15 ch) / HSI Skp2 Strobe Random (15 ch) / RGBA Skp3 Strobe Random (23 ch) / RGB Skp3 Strobe Random (18 ch) / HSI Skp3 Strobe Random (18 ch) / RGBA Skp6 Strobe Random (31 ch) / RGB Skp6 Strobe Random (24 ch) / HSI Skp6 Strobe Random (24 ch) |
| Long name | Color Force II 72 Plus |
| Beam angle | 26° |
| Dimensions | 139 × 136 × 1769 mm |
| Short name | ColorForceII72Plus |
| DMX channels | 1 / 3 / 4 / 5 / 6 / 8 / 9 / 10 / 11 / 12 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 22 / 23 / 24 / 26 / 29 / 30 / 31 / 32 / 34 / 36 / 38 / 39 / 41 / 42 / 48 / 50 / 54 / 55 / 72 / 74 / 77 / 78 / 96 / 98 / 102 / 103 |
| Fixture UUID | D468A91C-4E1B-11EF-B3CE-525400685065 |
| GDTF version | 1.2 |
| Luminous flux | 446 400 lm |
| Color temperature | 10000 K |
| Operating temperature | 0 to 40 °C |
