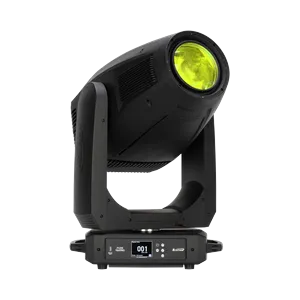

Elation Fuze Teatro
ELATION-79291

Elation Fuze Teatro

The FUZE TEATRO™ is a silent fanless full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 480W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of up to 15,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

Manufacturer: Elation Source: LED Angle: 6–15° Power consumption: 480 W
Price on request
Specifications
ParameterValue
CRI92
Power480 W
Weight36 kg
EmittersRed / Green / Blue / Mint / Amber
FeaturesDimmer / Shutter-Strobe / Additive color mixing / CMY color mixing / Color wheel / Color temperature control / Gobo wheel / Rotating gobo / Animation wheel / Prism / Frost / Iris / Zoom / Focus / Framing / Pan / Tilt
Revision24-25-11 Release
Beam typeSpot
Long nameFuze Teatro
Beam angle7–50° (zoom)
Dimensions300 × 110 × 462 mm
Gobo wheel6 gobos + open
Pan / Tilt630° / 270°
Short nameFzTeatro
DMX channels40 / 42 / 57 / 61
Fixture UUID4AE4F77B-D67D-4F0C-A9E2-094D40EB6550
GDTF version1.2
Luminous flux15 000 lm
Color temperature6000 K
Operating temperature-10 to 45 °C
DMX modesStd Pan540 · 42 ch | Ext Pan540 · 61 ch | RGB Pan540 · 40 ch | RGB Ext Pan540 · 57 ch | CMY Pan540 · 40 ch | CMY Ext Pan540 · 57 ch | Std Pan630 · 42 ch | Ext Pan630 · 61 ch | RGB Pan630 · 40 ch | RGB Ext Pan630 · 57 ch | CMY Pan630 · 40 ch | CMY Ext Pan630 · 57 ch
