ELATION-78277

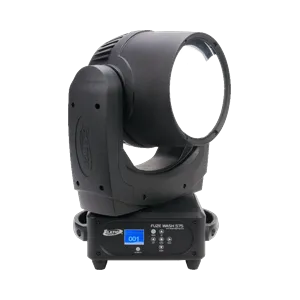

Elation Fuze Wash 575
The FUZE WASH 575™ is a single source par moving head luminaire with a high output 350W Cool White / Daylight 6,800K 95CRI COB LED engine, 11° to 40° motorized zoom, smooth 16-bit pan and tilt movement, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, 5pin DMX and Locking Power Cable in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 95 |
| Power | 350 W |
| Weight | 12.2 kg |
| Emitters | White |
| Features | Dimmer / Shutter-Strobe / Zoom / Pan / Tilt |
| Revision | First Release 2024-11-12 |
| Beam type | Wash |
| Long name | Fuze Wash 575 |
| Beam angle | 11–40° (zoom) |
| Dimensions | 184 × 108 × 296 mm |
| Pan / Tilt | 540° / 270° |
| Short name | FzWsh575 |
| DMX channels | 9 / 11 |
| Fixture UUID | 06B941A1-1ECD-416B-BFCC-00AF5069D43D |
| GDTF version | 1.2 |
| Luminous flux | 6 502 lm |
| Color temperature | 6800 K |
| Operating temperature | -10 to 45 °C |
| DMX modes | 11CH 16bit | 9CH 8bit |
