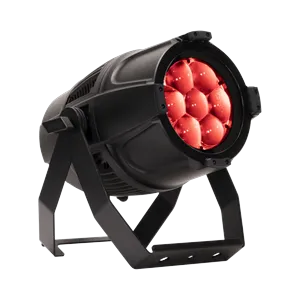

Elation LIMELIGHT PAR S
ELATION-75266

Elation LIMELIGHT PAR S

The LIMELIGHT PAR S engine features (7) 60W RGBL LED’s, capable of producing 5,345 lumens, provides high output for saturated color mixing, and the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 42°. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.

Manufacturer: Elation Source: LED Angle: ≤ 5° Power consumption: 420 W
Price on request
Specifications
ParameterValue
CRI100
Power420 W
Weight9.2 kg
EmittersRed / Green / Blue / Lime
FeaturesDimmer / Shutter-Strobe / Additive color mixing / CMY color mixing / Color wheel / Color temperature control / Zoom
Revision26-30-10 Release
Beam typeWash
Long nameLIMELIGHT PAR S
Beam angle5–42° (zoom)
Dimensions230 × 340 × 240 mm
Short nameLmLtPrS
Color wheel62 colors + open
DMX channels4 / 12 / 13 / 15 / 17 / 25
Fixture UUID25CC0CCD-D6E8-4E07-8F6A-50E61D0BA450
GDTF version1.2
Luminous flux5 300 lm
Color temperature6000 K
Operating temperature-15 to 45 °C
DMX modesExt Zones 25Ch | Std Zones 17Ch | Ext 17Ch | Std 13Ch | CMY Ext 15Ch | CMY 12Ch | RGB 4Ch

Data updated
