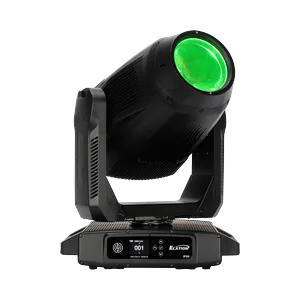

Elation Proteus Odeon
ELATION-79094

Elation Proteus Odeon

The PROTEUS ODEON™ is a powerful yet compact IP66-rated LED profile fixture offering outstanding projection and beam qualities in any environment. Providing up to 30800 lumens output from its custom-designed Variable CRI LED engine, the PROTEUS ODEON is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. The TruTone variable CRI allows selecting the best blend of light output and color accuracy, depending on the requirement of the show or scene. It is seamlessly adjustable from CRI 70 to CRI 93. PROTEUS ODEON provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control. With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS ODEON has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications. The PROTEUS ODEON ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

Manufacturer: Elation Source: LED Angle: 6–15° Power consumption: 850 W
Price on request
Specifications
ParameterValue
CRI80
Power850 W
Weight42 kg
EmittersMain
FeaturesDimmer / Shutter-Strobe / CMY color mixing / Color wheel / Color temperature control / Gobo wheel / Rotating gobo / Animation wheel / Prism / Frost / Iris / Zoom / Focus / Framing / Pan / Tilt
Revision2024-22-11 Release
Beam typeSpot
Long nameProteus Odeon
Beam angle5.5–50° (zoom)
Dimensions360 × 105 × 500 mm
Gobo wheel7 gobos + open
Pan / Tilt540° / 270°
Short nameProteus Odeon
Color wheel5 colors + open
DMX channels43 / 44 / 68 / 69
Fixture UUID11D8A396-A188-4E2C-8CFF-AD136C3A8A15
GDTF version1.2
Luminous flux30 800 lm
Color temperature6500 K
Operating temperature-10 to 45 °C
DMX modesExt CRI 80 · 68 ch | Ext CRI Flex CRI · 69 ch | Std CRI Flex CRI · 44 ch | Std CRI 80 · 43 ch
