ELATION-57704

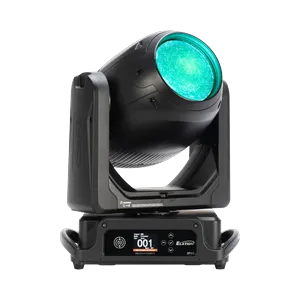

Elation Proteus Radius
The PROTEUS RADIUS is a compact IP66 High Intensity Beam FX fixture. Utilizing an efficient 100W Solid State Phosphor-Converted (SSPC) light engine the fixture projects narrow intense beams with incredible power at long distances. Incredibly fast 360 Degree of Movement on both axis allow impactful beam animations, while the CMY color mix, gobos, prisms and frost options allow the designer to compose an endless array of stunning aerial effects.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 70 |
| Power | 100 W |
| Weight | 19 kg |
| Emitters | 100W Solid State Phosphor-Converted (SSPC) Light Engine |
| Features | Dimmer / Shutter-Strobe / CMY color mixing / Color wheel / Gobo wheel / Rotating gobo / Prism / Frost / Focus / Pan / Tilt |
| Revision | 2024-15-02 First Release |
| Beam type | Spot |
| Long name | Proteus Radius |
| Beam angle | 1° |
| Dimensions | 280 × 120 × 400 mm |
| Gobo wheel | 24 gobos + open |
| Pan / Tilt | 630° / 540° |
| Short name | ProRad |
| Color wheel | 25 colors + open |
| DMX channels | 26 / 36 |
| Fixture UUID | B3107BAA-9C6A-4CAE-8E0E-086B2DF0FF8D |
| GDTF version | 1.2 |
| Luminous flux | 2 700 lm |
| Color temperature | 6000 K |
| Operating temperature | -10 to 45 °C |
| DMX modes | Extended Pan540 Tilt270 · 36 ch | Extended Pan630 Tilt 270 · 36 ch | Extended Pan540 Tilt540 · 36 ch | Extended Pan630 Tilt540 · 36 ch | Standard Pan540 Tilt270 · 26 ch | Standard Pan630 Tilt270 · 26 ch | Standard Pan540 Tilt540 · 26 ch | Standard Pan630 Tilt540 · 26 ch |
Data updated
🔍
