Elation PROTRON ECLYPSE
ELATION-43672

Elation PROTRON ECLYPSE

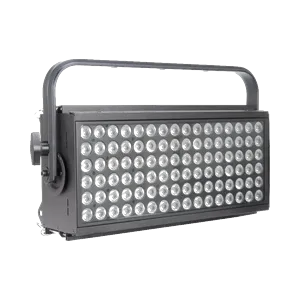

The PROTRON ECLYPSE™ is a versatile high powered 1000W air cooled IPX4 outdoor rated color blinder, strobe, wash luminaire. Features include (96) 10W CREE RGBW 4-in-1 LEDs, 31° beam / 63° field angles, 27,000+ total lumen output, brilliant eye candy effects, selectable pixel mapping zones, strobe intensity, duration, rate, and FX control, super high speed (1-25fps) adjustable strobe, DMX, RDM, Kling-NET, and Art-NET protocol support, 8/16 bit RGB and RGBW smooth color mixing modes, adjustable/removable yoke bracket with 3-position holes, interlocking system for multiple unit matrix designs, IP65 3/5pin DMX, RJ45 ethernet, IP65 Locking power in/out connections, 4-button control pane with OLED menu display, and a multi-voltage universal auto switching power supply (100-240v).

Manufacturer: Elation Source: LED Angle: 26–40° Power consumption: 10 W
Price on request
Specifications
ParameterValue
CRI96
Power10 W
Weight5.1 kg
EmittersRed / Green / Blue / Cool White
FeaturesDimmer / Shutter-Strobe / Additive color mixing
Revision23-19-07 Release
Beam typeWash
Long namePROTRON ECLYPSe
Beam angle31°
Dimensions300 × 254 × 635 mm
Short namePrtnEclypse
DMX channels3 / 4 / 6 / 8 / 12 / 13 / 16 / 17 / 20 / 21 / 24 / 25 / 32 / 33 / 56 / 57
Fixture UUID6853D903-431F-49E4-8927-9D9A19294080
GDTF version1.2
Luminous flux27 000 lm
Color temperature3200 K
Operating temperature-15 to 45 °C
DMX modesRGB · 3 ch | RGB 16bit · 6 ch | RGBW · 4 ch | RGBW 16bit · 8 ch | Strobe · 4 ch | 1 · 13 ch | 2V · 17 ch | 2H · 17 ch | 3 · 21 ch | 4 · 25 ch | 4A · 25 ch | 6 · 33 ch | 6A · 33 ch | 6H · 33 ch | 12 · 57 ch | 12A · 57 ch | F1 · 12 ch | F2V · 16 ch | F2H · 16 ch | F3 · 20 ch | F4 · 24 ch | F6V · 32 ch | F6H · 32 ch | F12 · 56 ch
