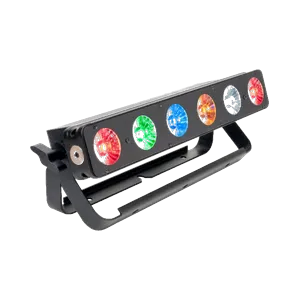

Elation SIXBAR 500
ELATION-56104

Elation SIXBAR 500

The SIXBAR 500™ features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Manufacturer: Elation Source: LED Angle: 16–25° Power consumption: 60 W
Price on request
Specifications
ParameterValue
CRI70
Power60 W
Weight4.1 kg
EmittersRed / Green / Blue / White / Amber / UV
FeaturesDimmer / Shutter-Strobe / Additive color mixing / Color wheel / Effects
Revision2024-24-01 First Release
Beam typeWash
Long nameSIXBAR 500
Beam angle18.7°
Dimensions40 × 140 × 465 mm
Short nameSIXBR500
Color wheel63 colors + open
DMX channels6 / 7 / 11 / 13 / 18 / 36 / 39 / 43
Fixture UUIDD038B579-BEA9-478A-AF05-A4C3DEE6E9C1
GDTF version1.2
Luminous flux1 698 lm
Color temperature6000 K
Operating temperature0 to 40 °C
DMX modes43CH | 39CH | 36CH | 18CH | 13CH | 11CH | 7CH | 6CH
