MARTIN-147871

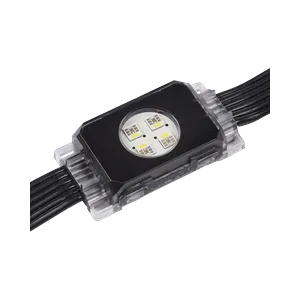

Martin Professional Exterior Dot-4 Pro
LED pixel bar with RGBW colour mixing, a 115° beam and 9 DMX modes.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 93 |
| Power | 64 W |
| Weight | 3 kg |
| Emitters | Direct_Red / Direct_Green / Direct_Blue / Direct_White |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control / Effects |
| Revision | 20260621 |
| Beam type | None |
| Long name | Exterior Dot-4 Pro |
| Beam angle | 115° |
| Dimensions | 31 × 13 × 59 mm |
| Short name | EXTDot4Pro |
| Color wheel | 48 colors + open |
| DMX channels | 3 / 4 / 6 / 12 / 24 / 48 / 96 / 192 |
| Fixture UUID | C2FDD182-B986-44E0-9D56-5131DCC8264B |
| GDTF version | 1.2 |
| Luminous flux | 4 544 lm |
| Color temperature | 6500 K |
| Operating temperature | -30 to 55 °C |
| DMX modes | Standard · 6 ch | Extended · 12 ch | Direct · 4 ch | RGB · 3 ch | PixelMap Segments of 16 · 12 ch | PixelMap Segments of 8 · 24 ch | PixelMap Segments of 4 · 48 ch | PixelMap Segments of 2 · 96 ch | PixelMap per Pixel · 192 ch |
