ONIX-108105

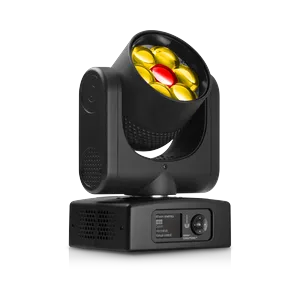

ONIX Mini-B 7X40
Mini-B features a wide zoom, ranging from 4° to 55° that makes this little luminaire extremely versatile. At the narrow angle, the beam produced is very solid and concentrated, superb for aerial effects. At full aperture, the Mini-B becomes an excellent wash light and it can replace much heavier and bulkier equipment. The Mini-B's central LED may be controlled separately from the external ring of LEDs, making it ideal for graphic lighting effects too. More than fifty pre-installed effects/color macros, 2500K-8000K color temperature control, a 24 bit dimmer with five curves, an electronic strobe @ 25 f/sec, and Ethernet access complete this highly professional tool.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 70 |
| Power | 280 W |
| Weight | 6.5 kg |
| Emitters | Red / Green / Blue / White |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color temperature control / Zoom / Pan / Tilt |
| Revision | INIT PUBLIC GOOD NAME |
| Beam type | Wash |
| Long name | Mini-B |
| Beam angle | 4–55° (zoom) |
| Dimensions | 186 × 100 × 309 mm |
| Pan / Tilt | 540° / 260° |
| Short name | MiniB |
| Color wheel | 65 colors + open |
| DMX channels | 18 |
| Fixture UUID | 4F39C8C6-6F1D-4F59-8359-7DEF666C0BA7 |
| GDTF version | 1.2 |
| Luminous flux | 23 800 lm |
| Color temperature | 8000 K |
| Operating temperature | -20 to 40 °C |
| DMX modes | Basic RGBW · 18 ch |
Data updated
🔍
