PROLIGHTS-66094

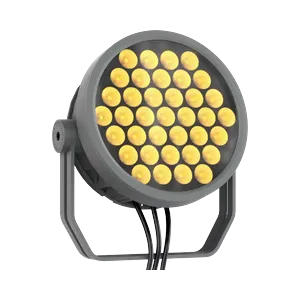

Prolights ArcSpotLFC
The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application. Among the series, the ArcSpot LFC stands out as a large sized round spot. It is equipped with 37x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 7000 lumens.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 95 |
| Power | 130 W |
| Weight | 4.5 kg |
| Emitters | Red / Green / Blue / Warm White |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color temperature control / Tilt / Effects |
| Revision | Rev 0.4 - Emitters Spectrum added |
| Beam type | Wash |
| Long name | ArcSpotLFC |
| Beam angle | 10.8° |
| Dimensions | 48 × 190 × 270 mm |
| Pan / Tilt | — / 180° |
| Short name | ASLFC |
| DMX channels | 5 / 6 / 9 / 12 / 13 |
| Fixture UUID | 32A5E018-077C-4021-907D-F558265FBC07 |
| GDTF version | 1.2 |
| Luminous flux | 6 079 lm |
| Color temperature | 6000 K |
| Operating temperature | -20 to 45 °C |
| DMX modes | 5ch | 6ch | 9ch | 12ch | 13ch |
