PROLIGHTS-33941

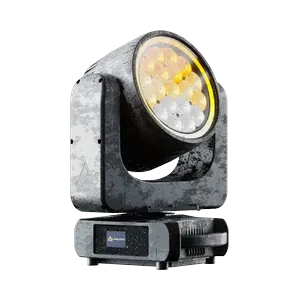

Prolights AstraWash19PIXIP
Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities. Based on a 40 W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application. Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN and RDM
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 65 |
| Power | 540 W |
| Weight | 25 kg |
| Emitters | Red / Green / Blue / White / Red Ring / Green Ring / Blue Ring |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color temperature control / Zoom / Pan / Tilt / Effects |
| Revision | Rev 004 - Tilt geometry link fixed on FX mode - RDM personalities ID added |
| Beam type | Wash |
| Long name | AstraWash19PIXIP |
| Beam angle | 4–54° (zoom) |
| Dimensions | 266 × 129 × 385 mm |
| Pan / Tilt | 540° / 233° |
| Short name | ASW19PIXIP |
| DMX channels | 23 / 30 / 35 / 42 / 44 / 52 / 56 / 64 / 99 / 106 / 120 / 128 |
| Fixture UUID | 366E0C0D-6E66-4A1E-87D6-DA8981B269B2 |
| GDTF version | 1.2 |
| Luminous flux | 5 123 lm |
| Color temperature | 6000 K |
| Operating temperature | -20 to 45 °C |
| DMX modes | Basic_23ch | Basic+Section_23ch+12ch · 35 ch | Basic+Pixel_23ch+76ch · 99 ch | Standard_30ch | Standard+Section_30ch+12ch · 42 ch | Standard+Pixel_30ch+76ch · 106 ch | FX_44ch | FX+Section_44ch+12ch · 56 ch | FX+Pixel_44ch+76ch · 120 ch | Extended_52ch | Extended+Section_52ch+12Ch · 64 ch | Extended+Pixel_52ch+76Ch · 128 ch |
