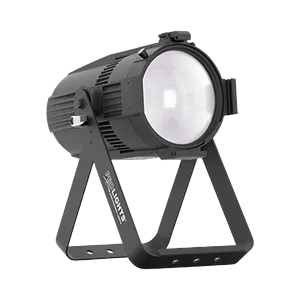

Prolights EclParDY_24
PROLIGHTS-34034

Prolights EclParDY_24

EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.

Manufacturer: Prolights Source: LED Angle: 16–25° Power consumption: 177 W
Price on request
Specifications
ParameterValue
CRI97
Power177 W
Weight5.5 kg
EmittersWhite
FeaturesDimmer / Shutter-Strobe / Pan / Tilt / Effects
RevisionRev 1.2 - Snap disable on dimmer mode, grand master enable
Beam typeSpot
Long nameEclParDY_24
Beam angle23.9°
Dimensions84 × 122 × 30 mm
Pan / Tilt360° / 360°
Short nameEclParDY_24
DMX channels1 / 2 / 3 / 6
Fixture UUIDE761B5C0-C314-40A0-AF99-2BF405CF1DE9
GDTF version1.2
Luminous flux14 436 lm
Color temperature5600 K
Operating temperature-10 to 45 °C
DMX modes1ch | 2ch | 3ch | 6ch
