Prolights LumipixXB100
PROLIGHTS-60528

Prolights LumipixXB100

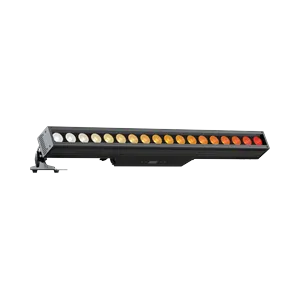

The LumiPix XB is a family of IP65 rated, pixel-controlled linear LED fixtures. The units are available in 100 cm (18 pixels) and 50 cm (9 pixels) - the 20W RGB + Warm White LEDs deliver a punchy beam of light with bright, vibrant colours and high CRI. The beam angle of the LumiPix XB can easily be adjustable with holographic beam shaper filters or with the optical accessories. These units were specifically made for live productions, and include control options like DMX/RDM, Ethernet and Wireless DMX (CRMX and W-DMX), sharing the same user settings and capabilities as the theatrical and broadcast luminaires.

Manufacturer: Prolights Source: LED Angle: 6–15° Power consumption: 270 W
Price on request
Specifications
ParameterValue
CRI91
Power270 W
Weight7.5 kg
EmittersRed / Green / Blue / White
FeaturesDimmer / Shutter-Strobe / Additive color mixing / Color temperature control / Effects
RevisionHS 1.00
Beam typeWash
Long nameLumipixXB100
Beam angle12°
Dimensions175 × 85 × 997 mm
Short nameLP100
Color wheel7 colors + open
DMX channels1 / 2 / 4 / 5 / 6 / 10 / 12 / 13 / 14 / 15 / 17 / 18 / 19 / 21 / 23 / 27 / 37 / 72 / 91 / 95 / 109
Fixture UUID4E97C383-990E-490B-A242-BA1BFB10782D
GDTF version1.2
Luminous flux8 010 lm
Color temperature6000 K
Operating temperature-10 to 45 °C
DMX modesUNO_1ch | DUO_2ch | Basic_RGBW_19ch | Basic_RGBW_19ch + 18PX_72ch · 91 ch | Standard_RGBW_23ch | Standard_RGBW_23ch + 18PX_72ch · 95 ch | Extended_RGBW_43ch · 37 ch | Extended_RGBW_43ch + 18PX_72ch · 109 ch | Direct 8bit_14ch | Direct 16bit_18ch | XY_19ch | Theater_4ch | Theater_5ch1 | Theater_5ch2 | Theater_6ch | Theater_10ch | Theater_15ch | Theater_17ch | Theater_21ch | Film_1M_12ch | Film_2M_20ch · 21 ch | FX Cine_13ch | FX Tour_20ch · 14 ch | FX Advanced_33ch · 27 ch | 18PX · 72 ch

Data updated
