QUASAR-26229

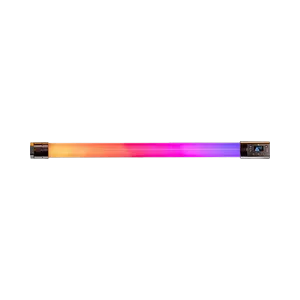

Quasar Science Rainbow R2 8ft
From lighting actors to environments, high quality tunable white light and the highest RGB color saturation with multiple pixels maintaining super smooth, flicker free dimming, the R2 will be your workhorse. This linear LED light offers incredible data connectivity whether wired or wireless and can be powered anywhere via AC and DC power inputs. Integrated Ossium Mounting System (OMS) allows for rigging in ways previously unobtainable. The unique RGBX Spectral Science Color Engine (RGBX SSCE) in the R2 delivers a choice of more than one billion colors. RGBX SSCE provides the complete range of potential spectral fingerprints available for each color within its entire gamut of color possibilities. To create the lighting industry’s most intuitive and natural color control experience, the RGBX SSCE maps its color calculations in the perceptually uniform CIE 1976 chromaticity space.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 100 |
| Power | 100 W |
| Emitters | Red / Green / Blue / Tungsten / Daylight |
| Features | Dimmer / Additive color mixing / Color temperature control / Effects |
| Revision | 1.0.2 - Initial Public release |
| Beam type | Rectangle |
| DMX modes | Profile 1: HSIC 8 Bit - Pixel 48 (240 ch) / Profile 1: HSIC 8 Bit - Pixel 24 (120 ch) / Profile 1: HSIC 8 Bit - Pixel 16 (80 ch) / Profile 1: HSIC 8 Bit - Pixel 12 (60 ch) / Profile 1: HSIC 8 Bit - Pixel 8 (40 ch) / Profile 1: HSIC 8 Bit - Pixel 6 (30 ch) / Profile 1: HSIC 8 Bit - Pixel 4 (20 ch) / Profile 1: HSIC 8 Bit - Pixel 3 (15 ch) / Profile 1: HSIC 8 Bit - Pixel 2 (10 ch) / Profile 1: HSIC 8 Bit - Pixel 1 (5 ch) / Profile 2: HSIC 16 Bit - Pixel 48 (384 ch) / Profile 2: HSIC 16 Bit - Pixel 24 (192 ch) / Profile 2: HSIC 16 Bit - Pixel 16 (128 ch) / Profile 2: HSIC 16 Bit - Pixel 12 (96 ch) / Profile 2: HSIC 16 Bit - Pixel 8 (64 ch) / Profile 2: HSIC 16 Bit - Pixel 6 (48 ch) / Profile 2: HSIC 16 Bit - Pixel 4 (32 ch) / Profile 2: HSIC 16 Bit - Pixel 3 (24 ch) / Profile 2: HSIC 16 Bit - Pixel 2 (16 ch) / Profile 2: HSIC 16 Bit - Pixel 1 (8 ch) / Profile 3: HSI 8 Bit - Pixel 48 (144 ch) / Profile 3: HSI 8 Bit - Pixel 24 (72 ch) / Profile 3: HSI 8 Bit - Pixel 16 (48 ch) / Profile 3: HSI 8 Bit - Pixel 12 (36 ch) / Profile 3: HSI 8 Bit - Pixel 8 (24 ch) / Profile 3: HSI 8 Bit - Pixel 6 (18 ch) / Profile 3: HSI 8 Bit - Pixel 4 (12 ch) / Profile 3: HSI 8 Bit - Pixel 3 (9 ch) / Profile 3: HSI 8 Bit - Pixel 2 (6 ch) / Profile 3: HSI 8 Bit - Pixel 1 (3 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 48 (144 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 24 (72 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 16 (48 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 12 (36 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 8 (24 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 6 (18 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 4 (12 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 3 (9 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 2 (6 ch) / Profile 4: Crossfade w/ Green 8 Bit - Pixel 1 (3 ch) / Profile 5: Crossfade 8 Bit - Pixel 48 (96 ch) / Profile 5: Crossfade 8 Bit - Pixel 24 (48 ch) / Profile 5: Crossfade 8 Bit - Pixel 16 (32 ch) / Profile 5: Crossfade 8 Bit - Pixel 12 (24 ch) / Profile 5: Crossfade 8 Bit - Pixel 8 (16 ch) / Profile 5: Crossfade 8 Bit - Pixel 6 (12 ch) / Profile 5: Crossfade 8 Bit - Pixel 4 (8 ch) / Profile 5: Crossfade 8 Bit - Pixel 3 (6 ch) / Profile 5: Crossfade 8 Bit - Pixel 2 (4 ch) / Profile 5: Crossfade 8 Bit - Pixel 1 (2 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 48 (336 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 24 (168 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 16 (112 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 12 (84 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 8 (56 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 6 (42 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 4 (28 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 3 (21 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 2 (14 ch) / Profile 6: CCT/RGB 8 Bit - Pixel 1 (7 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 48 (432 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 24 (216 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 16 (144 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 12 (108 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 8 (72 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 6 (54 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 4 (36 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 3 (27 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 2 (18 ch) / Profile 7: CCT/RGB 16 Bit - Pixel 1 (9 ch) / Profile 8: RGB 8 Bit - Pixel 48 (144 ch) / Profile 8: RGB 8 Bit - Pixel 24 (72 ch) / Profile 8: RGB 8 Bit - Pixel 16 (48 ch) / Profile 8: RGB 8 Bit - Pixel 12 (36 ch) / Profile 8: RGB 8 Bit - Pixel 8 (24 ch) / Profile 8: RGB 8 Bit - Pixel 6 (18 ch) / Profile 8: RGB 8 Bit - Pixel 4 (12 ch) / Profile 8: RGB 8 Bit - Pixel 3 (9 ch) / Profile 8: RGB 8 Bit - Pixel 2 (6 ch) / Profile 8: RGB 8 Bit - Pixel 1 (3 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 48 (243 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 24 (123 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 16 (83 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 12 (63 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 8 (43 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 6 (33 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 4 (23 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 3 (18 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 2 (13 ch) / Profile 9: HSIC + FX 8 Bit - Pixel 1 (8 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 48 (387 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 24 (195 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 16 (131 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 12 (99 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 8 (67 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 6 (51 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 4 (35 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 3 (27 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 2 (19 ch) / Profile 10: HSIC + FX 16 Bit - Pixel 1 (11 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 48 (339 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 24 (171 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 16 (115 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 12 (87 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 8 (59 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 6 (45 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 4 (31 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 3 (24 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 2 (17 ch) / Profile 11: CCT/RGB + FX 8 Bit - Pixel 1 (10 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 48 (435 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 24 (219 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 16 (147 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 12 (111 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 8 (75 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 6 (57 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 4 (39 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 3 (30 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 2 (21 ch) / Profile 12: CCT/RGB + FX 16 Bit - Pixel 1 (12 ch) / Profile 13: RGBTD 8 Bit - Pixel 48 (240 ch) / Profile 13: RGBTD 8 Bit - Pixel 24 (120 ch) / Profile 13: RGBTD 8 Bit - Pixel 16 (80 ch) / Profile 13: RGBTD 8 Bit - Pixel 12 (60 ch) / Profile 13: RGBTD 8 Bit - Pixel 8 (40 ch) / Profile 13: RGBTD 8 Bit - Pixel 6 (30 ch) / Profile 13: RGBTD 8 Bit - Pixel 4 (20 ch) / Profile 13: RGBTD 8 Bit - Pixel 3 (15 ch) / Profile 13: RGBTD 8 Bit - Pixel 2 (10 ch) / Profile 13: RGBTD 8 Bit - Pixel 1 (5 ch) / Profile 14: RGBTD 16 Bit - Pixel 48 (480 ch) / Profile 14: RGBTD 16 Bit - Pixel 24 (240 ch) / Profile 14: RGBTD 16 Bit - Pixel 16 (160 ch) / Profile 14: RGBTD 16 Bit - Pixel 12 (120 ch) / Profile 14: RGBTD 16 Bit - Pixel 8 (80 ch) / Profile 14: RGBTD 16 Bit - Pixel 6 (60 ch) / Profile 14: RGBTD 16 Bit - Pixel 4 (40 ch) / Profile 14: RGBTD 16 Bit - Pixel 3 (30 ch) / Profile 14: RGBTD 16 Bit - Pixel 2 (20 ch) / Profile 14: RGBTD 16 Bit - Pixel 1 (10 ch) / Profile 15: RGB 16 Bit - Pixel 48 (288 ch) / Profile 15: RGB 16 Bit - Pixel 24 (144 ch) / Profile 15: RGB 16 Bit - Pixel 16 (96 ch) / Profile 15: RGB 16 Bit - Pixel 12 (72 ch) / Profile 15: RGB 16 Bit - Pixel 8 (48 ch) / Profile 15: RGB 16 Bit - Pixel 6 (36 ch) / Profile 15: RGB 16 Bit - Pixel 4 (24 ch) / Profile 15: RGB 16 Bit - Pixel 3 (18 ch) / Profile 15: RGB 16 Bit - Pixel 2 (12 ch) / Profile 15: RGB 16 Bit - Pixel 1 (6 ch) / Profile 19: XY 8 Bit - Pixel 48 (144 ch) / Profile 19: XY 8 Bit - Pixel 24 (72 ch) / Profile 19: XY 8 Bit - Pixel 16 (48 ch) / Profile 19: XY 8 Bit - Pixel 12 (36 ch) / Profile 19: XY 8 Bit - Pixel 8 (24 ch) / Profile 19: XY 8 Bit - Pixel 6 (18 ch) / Profile 19: XY 8 Bit - Pixel 4 (12 ch) / Profile 19: XY 8 Bit - Pixel 3 (9 ch) / Profile 19: XY 8 Bit - Pixel 2 (6 ch) / Profile 19: XY 8 Bit - Pixel 1 (3 ch) / Profile 20: XY 16 Bit - Pixel 48 (288 ch) / Profile 20: XY 16 Bit - Pixel 24 (144 ch) / Profile 20: XY 16 Bit - Pixel 16 (96 ch) / Profile 20: XY 16 Bit - Pixel 12 (72 ch) / Profile 20: XY 16 Bit - Pixel 8 (48 ch) / Profile 20: XY 16 Bit - Pixel 6 (36 ch) / Profile 20: XY 16 Bit - Pixel 4 (24 ch) / Profile 20: XY 16 Bit - Pixel 3 (18 ch) / Profile 20: XY 16 Bit - Pixel 2 (12 ch) / Profile 20: XY 16 Bit - Pixel 1 (6 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 48 (145 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 24 (73 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 16 (49 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 12 (37 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 8 (25 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 6 (19 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 4 (13 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 3 (10 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 2 (7 ch) / Profile 21: XY + Spectrum 8 Bit - Pixel 1 (4 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 48 (289 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 24 (145 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 16 (97 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 12 (73 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 8 (49 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 6 (37 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 4 (25 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 3 (19 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 2 (13 ch) / Profile 22: XY + Spectrum 16 Bit - Pixel 1 (7 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 48 (241 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 24 (121 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 16 (81 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 12 (61 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 8 (41 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 6 (31 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 4 (21 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 3 (16 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 2 (11 ch) / Profile 31: HSIC + Output 8 Bit - Pixel 1 (6 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 48 (385 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 24 (193 ch) / Profile 32: HSIC + Output16 Bit - Pixel 16 (129 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 12 (97 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 8 (65 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 6 (49 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 4 (33 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 3 (25 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 2 (17 ch) / Profile 32: HSIC + Output 16 Bit - Pixel 1 (9 ch) / Profile 33: HSI + Output 8 Bit - Pixel 48 (145 ch) / Profile 33: HSI + Output 8 Bit - Pixel 24 (73 ch) / Profile 33: HSI + Output 8 Bit - Pixel 16 (49 ch) / Profile 33: HSI + Output 8 Bit - Pixel 12 (37 ch) / Profile 33: HSI + Output 8 Bit - Pixel 8 (25 ch) / Profile 33: HSI + Output 8 Bit - Pixel 6 (19 ch) / Profile 33: HSI + Output 8 Bit - Pixel 4 (13 ch) / Profile 33: HSI + Output 8 Bit - Pixel 3 (10 ch) / Profile 33: HSI + Output 8 Bit - Pixel 2 (7 ch) / Profile 33: HSI + Output 8 Bit - Pixel 1 (4 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 48 (145 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 24 (73 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 16 (49 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 12 (37 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 8 (25 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 6 (19 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 4 (13 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 3 (10 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 2 (7 ch) / Profile 34: Crossfade w/ Green + Output 8 Bit - Pixel 1 (4 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 48 (97 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 24 (49 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 16 (33 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 12 (25 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 8 (17 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 6 (13 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 4 (9 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 3 (7 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 2 (5 ch) / Profile 35: Crossfade + Output 8 Bit - Pixel 1 (3 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 48 (337 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 24 (169 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 16 (113 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 12 (85 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 8 (57 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 6 (43 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 4 (29 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 3 (22 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 2 (15 ch) / Profile 36: CCT/RGB + Output 8 Bit - Pixel 1 (8 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 48 (433 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 24 (217 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 16 (145 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 12 (109 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 8 (73 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 6 (55 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 4 (37 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 3 (28 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 2 (19 ch) / Profile 37: CCT/RGB + Output 16 Bit - Pixel 1 (10 ch) / Profile 38: RGB + Output 8 Bit - Pixel 48 (145 ch) / Profile 38: RGB + Output 8 Bit - Pixel 24 (73 ch) / Profile 38: RGB + Output 8 Bit - Pixel 16 (49 ch) / Profile 38: RGB + Output 8 Bit - Pixel 12 (37 ch) / Profile 38: RGB + Output 8 Bit - Pixel 8 (25 ch) / Profile 38: RGB + Output 8 Bit - Pixel 6 (19 ch) / Profile 38: RGB + Output 8 Bit - Pixel 4 (13 ch) / Profile 38: RGB + Output 8 Bit - Pixel 3 (10 ch) / Profile 38: RGB + Output 8 Bit - Pixel 2 (7 ch) / Profile 38: RGB + Output 8 Bit - Pixel 1 (4 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 48 (244 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 24 (124 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 16 (84 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 12 (64 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 8 (44 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 6 (34 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 4 (24 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 3 (19 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 2 (14 ch) / Profile 39: HSIC + FX + Output 8 Bit - Pixel 1 (9 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 48 (388 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 24 (196 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 16 (132 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 12 (100 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 8 (68 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 6 (52 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 4 (36 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 3 (28 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 2 (20 ch) / Profile 40: HSIC + FX + Output 16 Bit - Pixel 1 (12 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 48 (340 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 24 (172 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 16 (116 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 12 (88 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 8 (60 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 6 (46 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 4 (32 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 3 (25 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 2 (18 ch) / Profile 41: CCT/RGB + FX + Output 8 Bit - Pixel 1 (11 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 48 (436 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 24 (220 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 16 (148 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 12 (112 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 8 (76 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 6 (58 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 4 (40 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 3 (31 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 2 (22 ch) / Profile 42: CCT/RGB + FX + Output 16 Bit - Pixel 1 (13 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 48 (241 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 24 (121 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 16 (81 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 12 (61 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 8 (41 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 6 (31 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 4 (21 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 3 (16 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 2 (11 ch) / Profile 43: RGBTD + Output 8 Bit - Pixel 1 (6 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 48 (481 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 24 (241 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 16 (161 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 12 (121 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 8 (81 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 6 (61 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 4 (41 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 3 (31 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 2 (21 ch) / Profile 44: RGBTD + Output 16 Bit - Pixel 1 (11 ch) / Profile 45: RGB + Output 16 Bit - Pixel 48 (289 ch) / Profile 45: RGB + Output 16 Bit - Pixel 24 (145 ch) / Profile 45: RGB + Output 16 Bit - Pixel 16 (97 ch) / Profile 45: RGB + Output 16 Bit - Pixel 12 (73 ch) / Profile 45: RGB + Output 16 Bit - Pixel 8 (49 ch) / Profile 45: RGB + Output 16 Bit - Pixel 6 (37 ch) / Profile 45: RGB + Output 16 Bit - Pixel 4 (25 ch) / Profile 45: RGB + Output 16 Bit - Pixel 3 (19 ch) / Profile 45: RGB + Output 16 Bit - Pixel 2 (13 ch) / Profile 45: RGB + Output 16 Bit - Pixel 1 (7 ch) |
| Long name | Rainbow R2 8' |
| Beam angle | 25° |
| Dimensions | 59 × 48 × 2310 mm |
| Short name | R2 8ft |
| DMX channels | 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 25 / 27 / 28 / 29 / 30 / 31 / 32 / 33 / 34 / 35 / 36 / 37 / 39 / 40 / 41 / 42 / 43 / 44 / 45 / 46 / 48 / 49 / 51 / 52 / 54 / 55 / 56 / 57 / 58 / 59 / 60 / 61 / 63 / 64 / 65 / 67 / 68 / 72 / 73 / 75 / 76 / 80 / 81 / 83 / 84 / 85 / 87 / 88 / 96 / 97 / 99 / 100 / 108 / 109 / 111 / 112 / 113 / 115 / 116 / 120 / 121 / 123 / 124 / 128 / 129 / 131 / 132 / 144 / 145 / 147 / 148 / 160 / 161 / 168 / 169 / 171 / 172 / 192 / 193 / 195 / 196 / 216 / 217 / 219 / 220 / 240 / 241 / 243 / 244 / 288 / 289 / 336 / 337 / 339 / 340 / 384 / 385 / 387 / 388 / 432 / 433 / 435 / 436 / 480 / 481 |
| Fixture UUID | F1572C4B-467A-40F2-9BAD-C7E32154AB0F |
| GDTF version | 1.2 |
| Luminous flux | 130 lm |
| Color temperature | 6000 K |
| Operating temperature | 0 to 40 °C |
