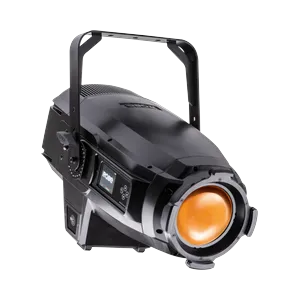

Robe Lighting Robin iT12 PC
iT12 PC For all-environment smooth area wash lighting, the iT12 PC™ has all the tools, features, controls, and light qualities to deliver outstanding static soft-wash performance, whatever the elements can throw at it. Joining the Robe iSERIES, the IP65-protected iT12 PC™ will manage any inclement weather. Our revolutionary, self-managing, low-maintenance ingress protection RAINS™ technology ensures peace of mind for theatres, television, and concerts, indoors or out. Powered by the 500W iSE-MSL-TE™ LED engine, iT12 PC™ offers over 11.000 lumens (integrating sphere) fixture output, while maintaining the T-series’ famous colour finesse, rendition and absolute consistency. TRANSFERABLE ENGINE technology enables field engine replacement and keeps up with the latest LED advancements, supporting an exceptionally long fixture life. Users can choose RGB, CMY, or individual colour emitter control. With CCT adjustable from 2.700K–8.000K; factory-calibrated whites; virtual CRI from 80 to 95+ and DataSwatch™ onboard colour library including 237 preset colours and tones, you have a full set of colour control options. For all-encompassing wash work, the iT12 PC™ features a 12:1 ratio motorized 5°-60° zoom. Designed for high output even outdoors, our patented parCoat™ lens coatings prevent debris buildup, and repels water and oil, protecting optics to maintain output levels. To provide beam shaping, an optional drop-in, motorised internal barndoor module features four individually controlled doors with +/- 90° module rotation. A MagFrost™ quick change image softening 5° medium frost comes fitted as standard. A scrim with graduated filter positional control and +/- 180° rotation gives additional beam control to remove unsightly hot spots. Our patented BARS™ (Brake Attribute Retention System) locks the motorised zoom firmly in place for consistent, accurate reproduction of lighting cues even when the fixture is power cycled. For extreme cold, the patented POLAR+™ power-saving standby mode maintains internal temperature, ensuring operability down to -50°C. Real-time monitoring via REAP™ software and NFC setup access enable streamlined management, while the fixture’s tool-free Self Pressure Test alerts users of improper fixture sealing.
Downloads
| Parameter | Value |
|---|---|
| CRI | 95 |
| Power | 500 W |
| Weight | 25.3 kg |
| Emitters | Red / Green / Blue / Amber / Lime / White / 8000 K / 8000 K Cri90+ / 5600 K / 5600 K Cri90+ / 4200 K / 4200 K Cri90+ / 3200 K / 3200 K Cri90+ / 2700K / 2700K Cri90+ |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / CMY color mixing / Color wheel / Color temperature control / Gobo wheel / Rotating gobo / Animation wheel / Frost / Iris / Zoom / Focus / Framing / Tilt |
| Revision | 2026-07-21 Color control channel update |
| Beam type | Wash |
| DMX modes | Mode 1 - 16-bit CMY (24 ch) / Mode 2 - 16-bit RGBAL (28 ch) / Mode 3 - 16-bit CMY + Framing module (35 ch) / Mode 4 - 16-bit RGBAL + Framing module (39 ch) / Mode 5 - 16-bit CMY + Gobo module (32 ch) / Mode 6 - 16-bit RGBAL + Gobo module (36 ch) / Mode 7 - 16-bit CMY + Gobo + Framing module (43 ch) / Mode 8- 16-bit RGBAL Gobo+ Framing (47 ch) |
| Long name | Robin iT12 PC™ |
| Beam angle | 6–60° (zoom) |
| Dimensions | 45 × 329 × 329 mm |
| Gobo wheel | 9 gobos + open |
| Pan / Tilt | — / 252° |
| Short name | iT12 PC |
| Color wheel | 66 colors + open |
| DMX channels | 24 / 28 / 32 / 35 / 36 / 39 / 43 / 47 |
| Fixture UUID | B6286EDF-2292-453E-A900-72DCBA22D6DC |
| GDTF version | 1.2 |
| Luminous flux | 11 000 lm |
| Color temperature | 8000 K |
| Operating temperature | -20 to 45 °C |
