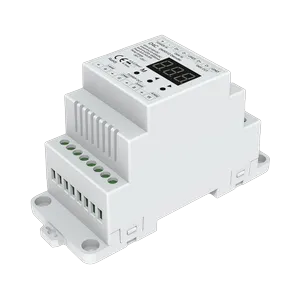

SOH 4-channel DMX512 dimmer D4C on DIN rail, RGBW, constant current 150-500 mA
LIGHT301

SOH 4-channel DMX512 dimmer D4C on DIN rail, RGBW, constant current 150-500 mA

4-channel dimmer designed for controlling LED systems with a common anode using a DMX console, which include e.g. 4 different single-color, or RGB or RGBW LED stripes. This dimmer allows a constant current of 150-500 mA to be passed through the stripe! Linear or logarithmic dimming. Input 12-48 V DC. independent control of 4 individual channelsinput voltage 12 V to 48 V DC output voltage 4x (3-45) V DC RDM two-way communication – DMX address setting from DMX control with RGBW 4 independent modes, the light intensity can be saved separatel choice of PWM frequencies 250 / 500 / 1000 / 2000 / 4000 / 8000 / 16000 Hz logarithmic or linear dimming settings possibility of installation on a DIN rail setting the DMX address using the LCD display with buttons 8 pin screw terminal block Wiring diagram: Logarithmic and linear dimming curves: Technical specifications Dimensions: 45 × 65 × 114 mm (W × D × H) Input voltage: 12-48 V DC Number of channels: 4 Output voltage: 4x (3-45) V DC Input current: 4x (150-500) mA (constant current) Output power: 4x (0.45-22.5) W DMX512 channels: 1 / 2 / 4 channel output selection PWM frequency: selectable 250 / 500 / 1000 / 2000 / 4000 / 8000 / 16000 Hz Dimming: choice of linear or logarithmic Operating temperature: -30°C - +55°C Degree of protection: IP20 (not waterproof) Connection: 8-pin screw terminal block Protections: reverse polarity, against short circuit Possibility of installation on a DIN rail

Manufacturer: SOH Power consumption: 301 W
Price on request
Manual
Specifications
ParameterValue
FeaturesDimmer / Additive color mixing
Long name4-channel DMX512 dimmer D4C on DIN rail, RGBW, constant current 150-500 mA
Dimensions45 × 114 × 65 mm
Short nameLIGHT301
DMX channels1 / 2 / 4
GDTF version1.2
Operating temperature-30 to 55 °C
DMX modesd-4 (4CH) | d-1 (1CH) | d-2 (2CH)

Data updated
