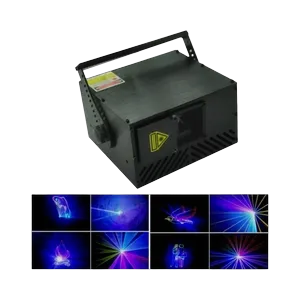

SOH Graphic 1 W RGB 3-in-1 laser, 15 kpps, ILDA, DMX, SD card, remote control
LASER283

SOH Graphic 1 W RGB 3-in-1 laser, 15 kpps, ILDA, DMX, SD card, remote control

New model - now also with an SD memory card slot, remote control and USB memory card reader. New Laser Model - contains 1 W 3in1 laser diode module with a perfectly balanced and calibrated white! Thanks to the modern laser module, which is manufactured as a 3in1 RGB laser, there is no risk of the color position being blown by the laser. In addition, with a precisely designed CNC milled case, the minimum laser dimensions are achieved. This is the most advanced laser manufacturing technology. Compacted dimensions. Scan speed 15 kpps. Big viewing angle-60° (with ILDA PC Control 30°), TTL modulation. The laser is newly supplemented with a USB SD memory card reader and a slot for card on the back panel of the laser, so you can use your own images and graphics for projection: Laser is also equipped with a remote control for convenient laser mode switching: Built-in 96 kinds of geometric animations and 103 kinds of cartoon animations. Auto mode, built-in mic for sound control (Sound Active), DMX512 control (17 channels), Master/Slave linking (3-+pin XLR IN/OUT). ILDA graphic mode - we recommend Pangolin Quick Show. Pattern selections, laser diode brightness adjustment for analogue modulation, color change, X/Y movement, dimmer, animations rotation, zoom in/out, drawing, etc. Individually X/Y axes control. PC linking with 3-pin XLR IN/OUT sockets on the back panel. Digital LCD display. Keylock for the safety use. Active air cooling fan. Including hanging bracket. Effects: For this 1 W RGB 3in1 laser is suitable flight case transport box. We offer RGB module 3in1 1000 mW for this laser. We also offer Profi lasers with 3in1 module and analogue modulation. Technical specifications Total power: 1000 mW, TTL modulation Diode: RGB laser module 3in1, 1000 mW Laser class: 4 Scanner: 15 kpps Beam angle: 60° (with ILDA PC Control 30°) Working modes: AUTO, Sound Active, Master/Slave linking, DMX512, ILDA DMX channels: 17 DMX linking: 3-pin XLR IN/OUT for DMX or Master/Slave linking ILDA: 25-pin IN/OUT connectors Display: digital LCD display Power supply: Bi-Voltage 110 V to 220 V - 250 V, 50/60 Hz, 20 W Dimensions: 187 x 170 x 120 mm (L x D x H) (without handle) Weight: 3200 g Package: laser, power cable, hanging console, manual, security key, USB SD / micro SD card reader, remote control

Manufacturer: SOH Power consumption: 283 W
Price on request
Manual
Specifications
ParameterValue
Weight3.2 kg
FeaturesShutter-Strobe / Additive color mixing / Gobo wheel / Rotating gobo / Zoom / Pan / Tilt / Effects
Long nameGraphic 1 W RGB 3-in-1 laser, 15 kpps, ILDA, DMX, SD card, remote control
Dimensions187 × 120 × 170 mm
Pan / Tilt60° / 60°
Short nameLASER283
DMX channels17
GDTF version1.2
DMX modes17CH

Data updated
