ASTERA-108994

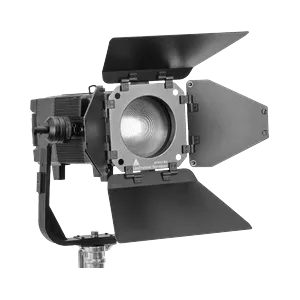

Astera LED Technology AF250 LeoFresnel
Astera’s LeoFresnel is as an exceptional solution for film, studio, and event lighting. LeoFresnel boasts an impressive output comparable to a traditional 1000 W Tungsten Fresnel. With a beam angle of 15° to 60° without color fringing, wireless and wired DMX control, these lights offer impressive performance while consuming only 250 W. Easy to mount and adjust with removable handles and YokeBases, they enhance creativity and productivity on any set.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 100 |
| Power | 250 W |
| Weight | 16.3 kg |
| Emitters | Red / Green / Blue / White Point |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control |
| Revision | Howl Jhona Pendragon |
| Beam type | Wash |
| DMX modes | 1: RGB (3 ch) / 2: RGBW (4 ch) / 3: RGBAW (5 ch) / 4: DIM RGB (4 ch) / 5: DIM RGBW (5 ch) / 6: DIM RGBAW (6 ch) / 7: RGB CCT DIM IND (6 ch) / 8: RGBS (4 ch) / 9: RGBWS (5 ch) / 10: RGBAWS (6 ch) / 11: DIM RGBS (5 ch) / 12: DIM RGBWS (6 ch) / 13: DIM RGBAWS (7 ch) / 14: RGB CCT DIM IND S (7 ch) / 15: Effect Mode Fix (13 ch) / 16: Effect Mode RGB (21 ch) / 89: D CCT GM CRO RGB (7 ch) / 90: D CCT GM HUE SAT (5 ch) / 91: D16 CCT GM C RGB (8 ch) / 92: D16 CCT GM H SAT (7 ch) / 93: D16 X Y (6 ch) / 94: D CCT GM CRO RGB S (8 ch) / 95: D CCT GM HUE SAT S (6 ch) / 96: D16 CCT GM H SAT S (8 ch) / 97: D16 X Y S (7 ch) / 137: D16 CCT GM C RGB S (9 ch) / 144: RGB FAN (4 ch) / 145 RGBW FAN (5 ch) / 146: RGBAW FAN (6 ch) / 147: DIM RGB FAN (5 ch) / 148: DIM RGBW FAN (6 ch) / 149: DIM RGBAW FAN (7 ch) / 150: RGB CCT DIM IND FAN (7 ch) / 151: D CCT GM CRO RGB FAN (8 ch) / 152: D CCT GM HUE SAT FAN (6 ch) / 153: D16 CCT GM C RGB FAN (9 ch) / 154: D16 CCT GM H SAT FAN (8 ch) / 155: D16 X Y FAN (7 ch) / 156: RGBS FAN (5 ch) / 157: RGBWS FAN (6 ch) / 158: RGBAWS FAN (7 ch) / 159: DIM RGBS FAN (6 ch) / 160: DIM RGBWS FAN (7 ch) / 161: DIM RGBAWS FAN (8 ch) / 162: RGB CCT DIM IND S FAN (8 ch) / 163: D CCT GM CRO RGB S FAN (9 ch) / 164: D CCT GM HUE SAT S FAN (7 ch) / 165: D16 CCT GM C RGB S FAN (10 ch) / 166: D16 CCT GM H SAT S FAN (9 ch) / 167: D16 X Y S FAN (8 ch) / 168: D CCT GM CRO XY (8 ch) / 169: D16 CCT GM CRO XY (9 ch) / 170: D CCT GM C CRO XY S (9 ch) / 171: D16 CCT GM C CRO XY S (10 ch) / 172: D CCT GM CRO XY FAN (9 ch) / 173: D16 CCT GM CRO XY FAN (10 ch) / 174: D CCT GM CRO XY S FAN (10 ch) / 175: D16 CCT GM CRO XY S FAN (11 ch) / 176: EFFECT MODE FIX FAN (14 ch) / 177: EFFECT MODE RGB FAN (22 ch) |
| Long name | AF250 LeoFresnel |
| Beam angle | 60° |
| Dimensions | 238 × 456 × 213 mm |
| Short name | LeoFresnel |
| Color wheel | 150 colors + open |
| DMX channels | 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 13 / 14 / 21 / 22 |
| Fixture UUID | E1D131B7-700F-4F85-BC16-3EDE98DAF967 |
| GDTF version | 1.2 |
| Luminous flux | 7 118 lm |
| Color temperature | 5500 K |
| Operating temperature | 0 to 40 °C |
