ASTERA-63000

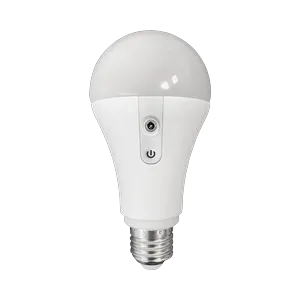

Astera LED Technology FP5 NYX Bulb
The first color-tunable LED bulb for professional film, stage and event productions. Not bigger than a normal LED bulb, it contains a CRMX receiver as well as RF and Bluetooth modules for the AsteraApp. It can be powered via lamp socket or with a standard power bank and thanks to its Titan LED engine it displays precise colors and white tones with ultra-high CRI and TLCI. Available in white and black.
Price on request
Downloads
| Parameter | Value |
|---|---|
| CRI | 100 |
| Power | 14 W |
| Weight | 0.2 kg |
| Emitters | Red / Green / Blue / White Point |
| Features | Dimmer / Shutter-Strobe / Additive color mixing / Color wheel / Color temperature control |
| Revision | tested by Astera / V3 |
| Beam type | Wash |
| DMX modes | 1: RGB (3 ch) / 2: RGBW (4 ch) / 3: RGBAW (5 ch) / 4: DIM RGB (4 ch) / 5: DIM RGBW (5 ch) / 6: DIM RGBAW (6 ch) / 7: RGB CCT DIM IND (6 ch) / 8: RGBS (4 ch) / 9: RGBWS (5 ch) / 10: RGBAWS (6 ch) / 11: DIM RGBS (5 ch) / 12: DIM RGBWS (6 ch) / 13: DIM RGBAWS (7 ch) / 14: RGB CCT DIM IND S (7 ch) / 15: Effect Mode Fix (13 ch) / 16: Effect Mode RGB (21 ch) / 89: D CCT GM CRO RGB (7 ch) / 90: D CCT GM HUE SAT (5 ch) / 91: D16 CCT GM C RGB (8 ch) / 92: D16 CCT GM H SAT (7 ch) / 93: D16 X Y (6 ch) / 94: D CCT GM CRO RGB S (8 ch) / 95: D CCT GM HUE SAT S (6 ch) / 96: D16 CCT GM H SAT S (8 ch) / 97: D16 X Y S (7 ch) / 137: D16 CCT GM C RGB S (9 ch) / 168: D CCT GM C CRO XY (8 ch) / 169: D16 CCT GM C CRO XY (9 ch) / 170: D CCT GM C CRO XY S (9 ch) / 171: D16 CCT GM C CRO XY S (10 ch) |
| Long name | FP5 NYX Bulb |
| Beam angle | 155° |
| Dimensions | 69 × 87 × 69 mm |
| Short name | NYX Bulb |
| Color wheel | 150 colors + open |
| DMX channels | 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 21 |
| Fixture UUID | 0145C91E-F7BC-413C-BFEB-00F82BFFE1D0 |
| GDTF version | 1.2 |
| Luminous flux | 750 lm |
| Color temperature | 5500 K |
| Operating temperature | 0 to 40 °C |
